Windshield Washer Pump: Service and Repair

Windshield Washer Pump -V5-, Removing And Installing

Removing

CAUTION:
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.







- Remove washer reservoir.
With the electrical connection and washer hoses removed from the washer pump

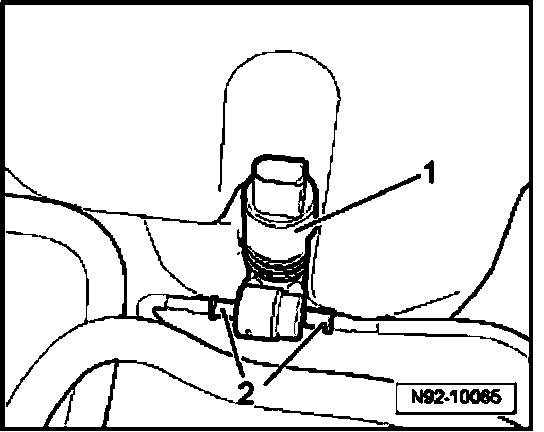

- Pull washer pump -1- straight up and out of retainer in reservoir.

Installing
Install in reverse order of removal.
