Windshield Washer Spray Nozzle: Testing and Inspection

Windshield Washer Jets, Checking And Adjusting

CAUTION: Washer jets must not be cleaned opposite to the spray direction, e.g.: blown through from front.


From m.y. 2000
- New design washer jets are installed from m.y. 2000.

Washer jets are preset but small height adjustments can be made.

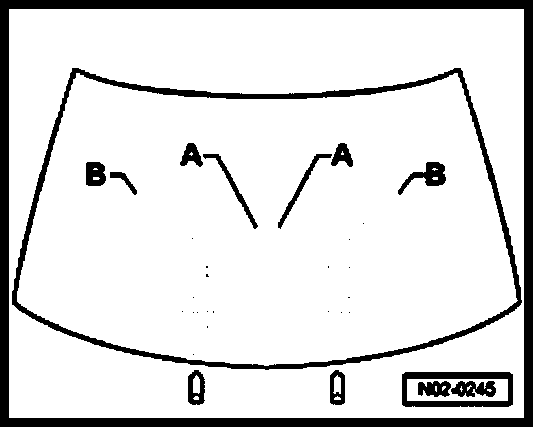

Both spray fields are defined with points A & B.
Distance between points A & B and upper windshield are indicated in a straight line.

Point Distance
A 480 mm (18.8 in.)
B 400 mm (15.7 in.)

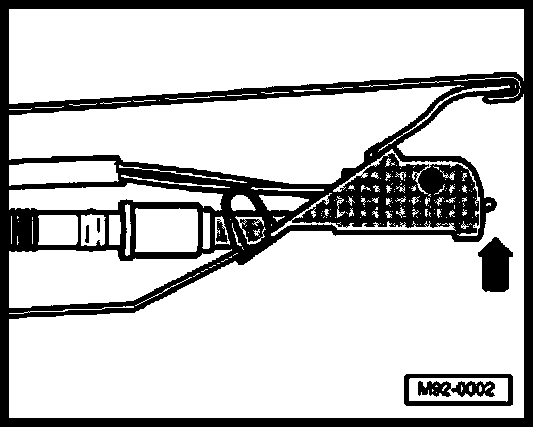

- Move spray jet in direction of arrow with finger.
