Wiper Arm: Service and Repair

Windshield Wiper Arms, Removing And Installing

Removing

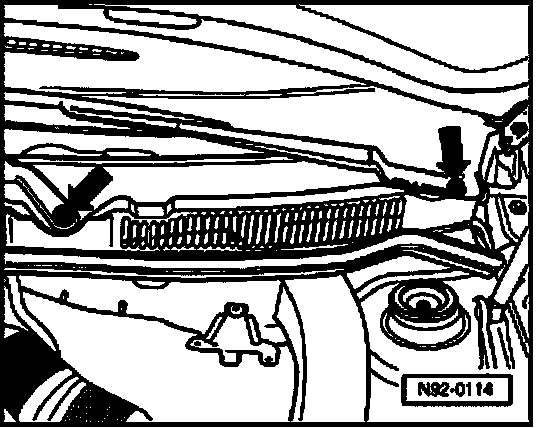

Wiper arms, removing.

Installing

NOTE: Wiper arm nuts -1- must be only be torqued after the wiper blade park position is adjusted properly.







- Switch ignition on and briefly turn wipers on and off (wipers must come to a complete stop)
- Switch off ignition and remove ignition key.
- Mount wiper arms to wiper shaft and loosely install nuts -1- (do not tighten).
- Adjust wiper blade park position.
- Reinstall cover caps.
