Connector Locations

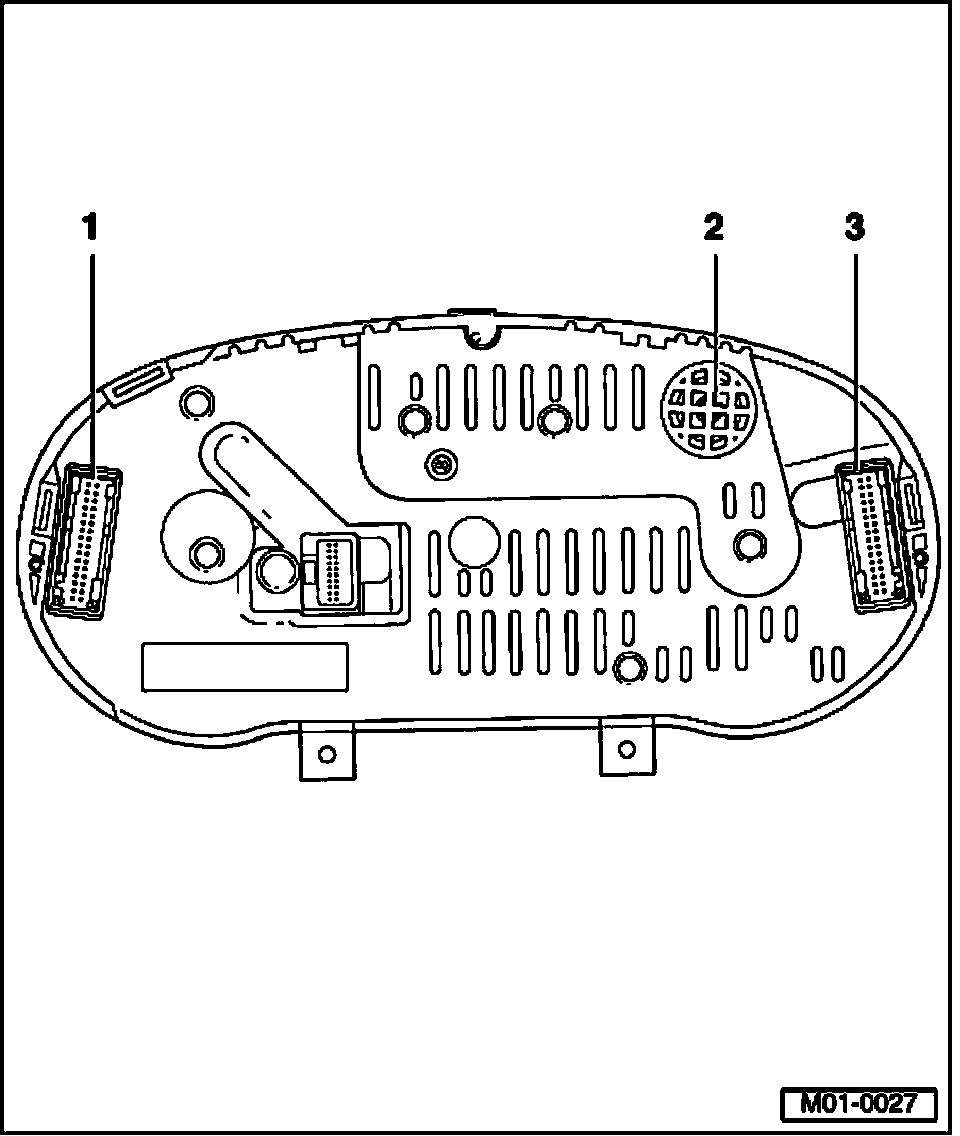

Instrument Cluster, Rear View







1. 32 pin multi-pin connector
- Green

2. Warning buzzer
- Oil pressure warning
- Lights on warning
- Brake system malfunction
- Brake pad/lining wear warning
- Ignition key warning
- Seat belt warning

3. 32 pin multi-pin connector
- Blue
