Complete Index

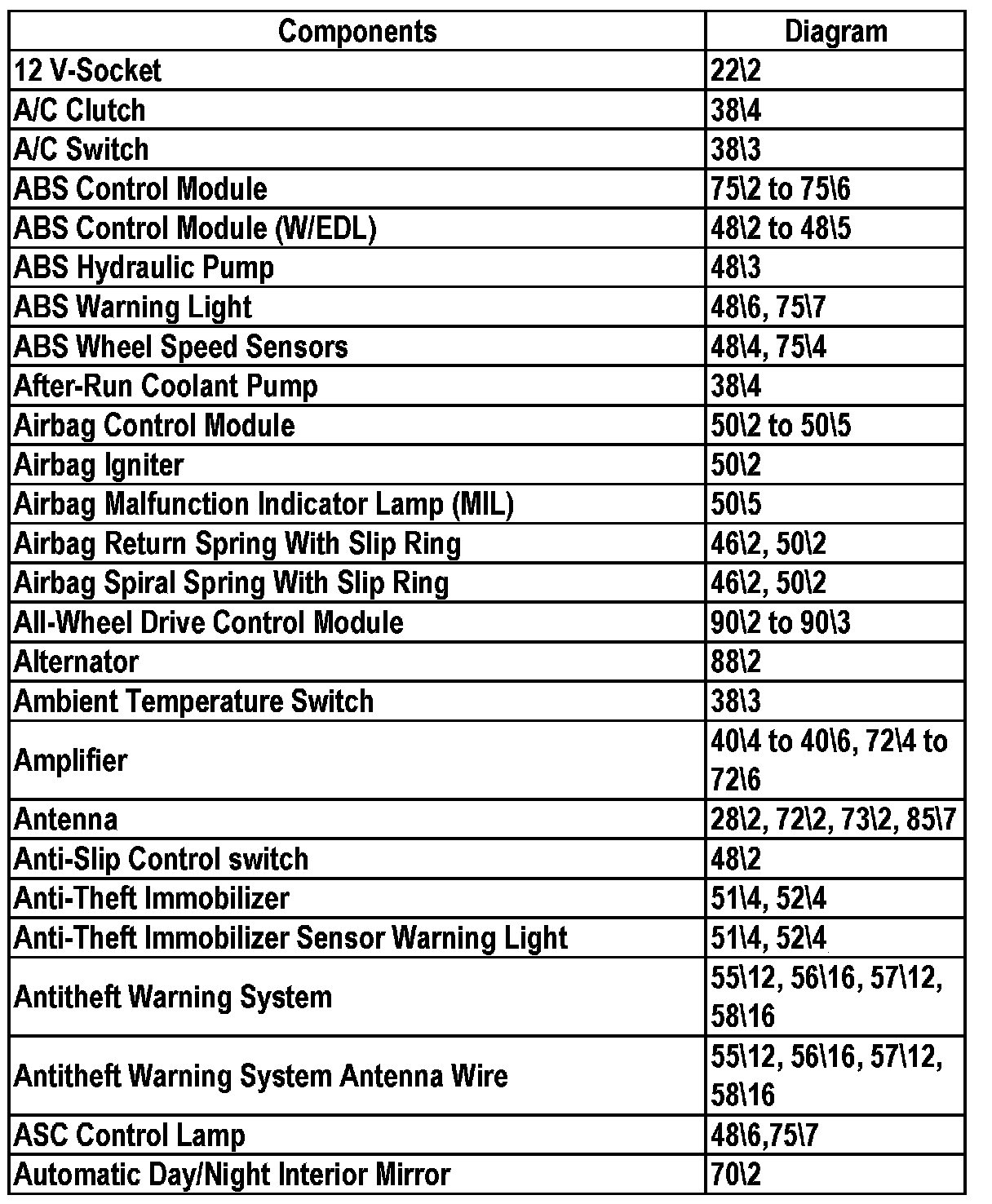

12V - Au:

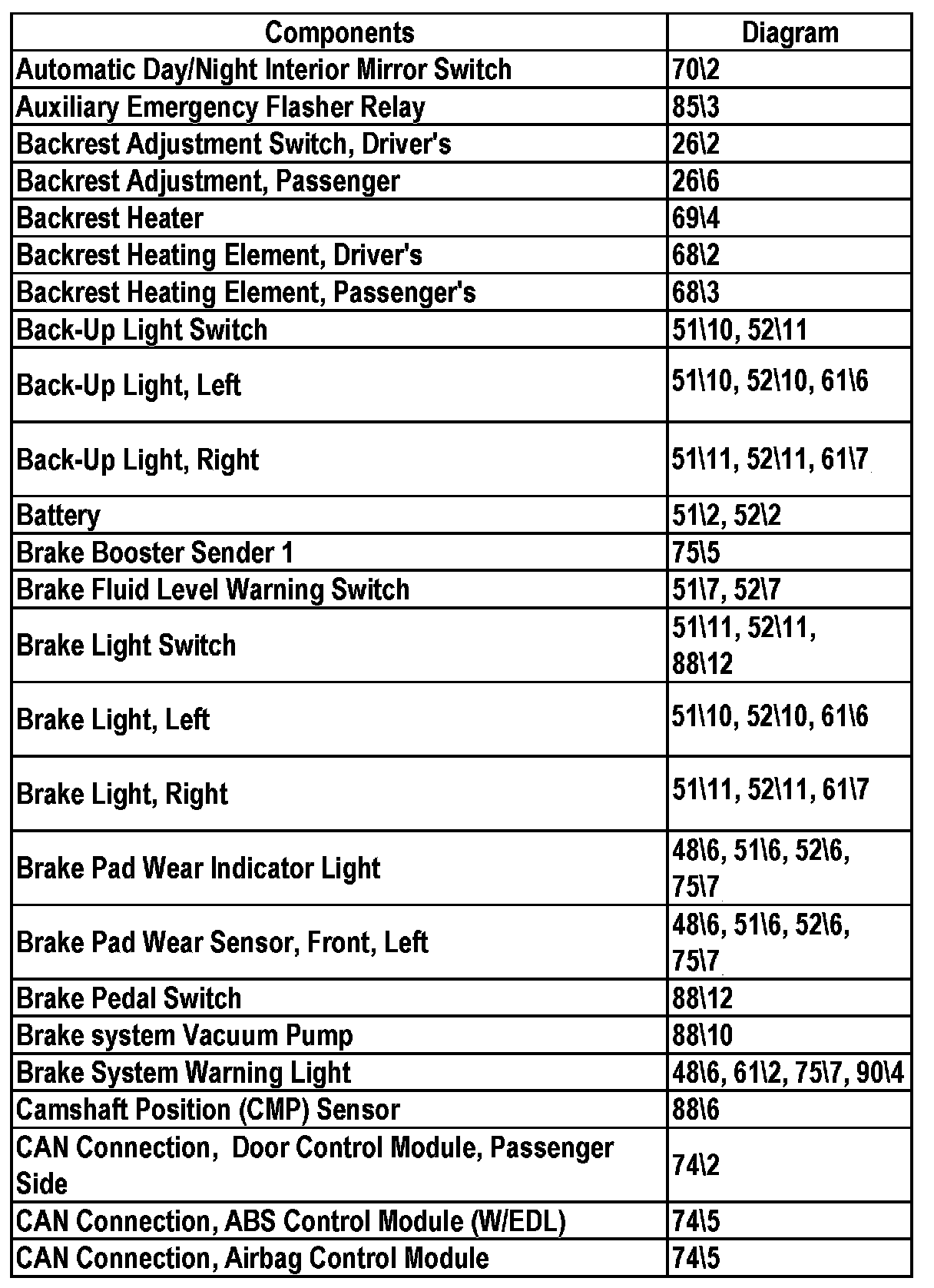

Au - CAN:

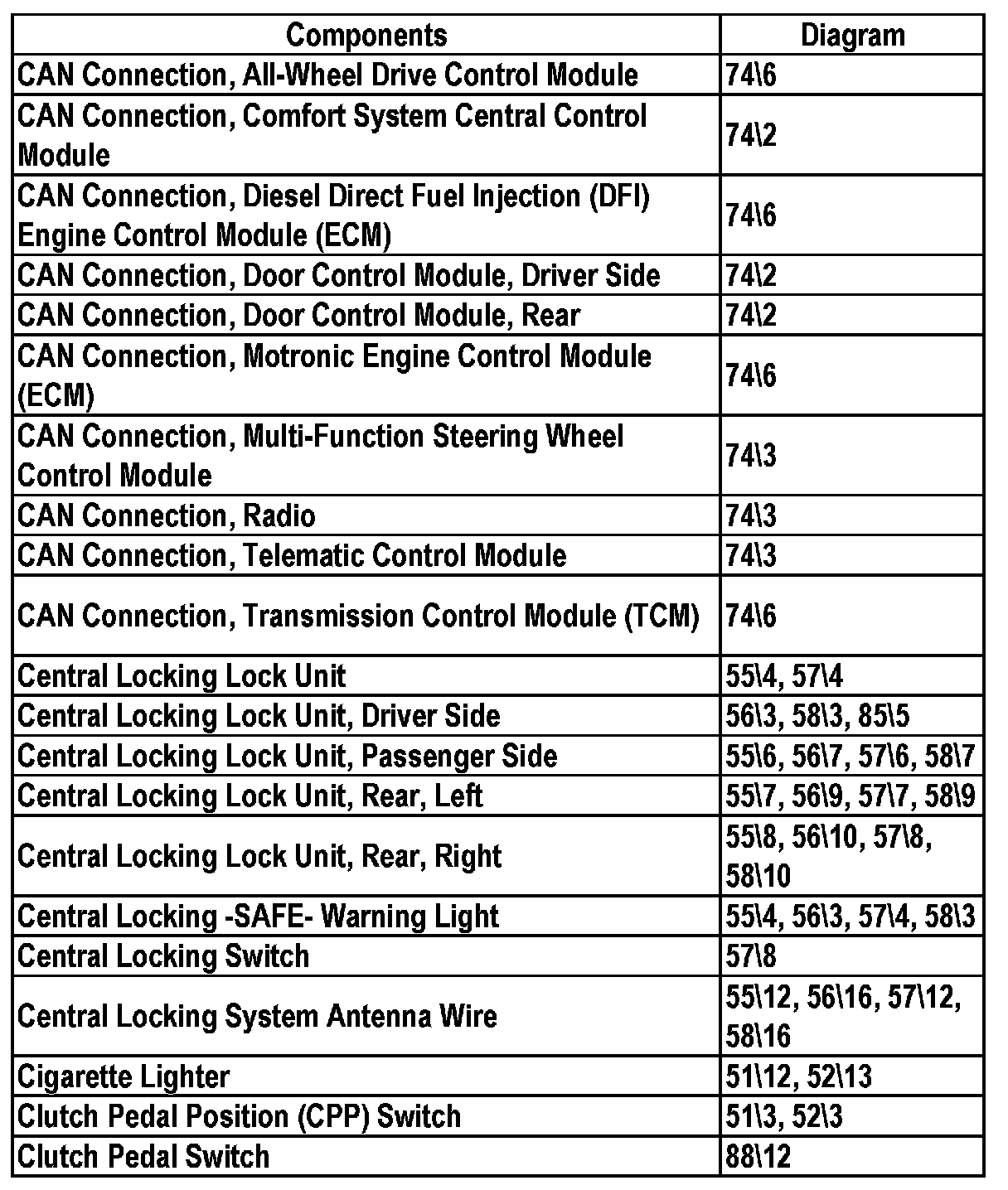

CAN - Cl:

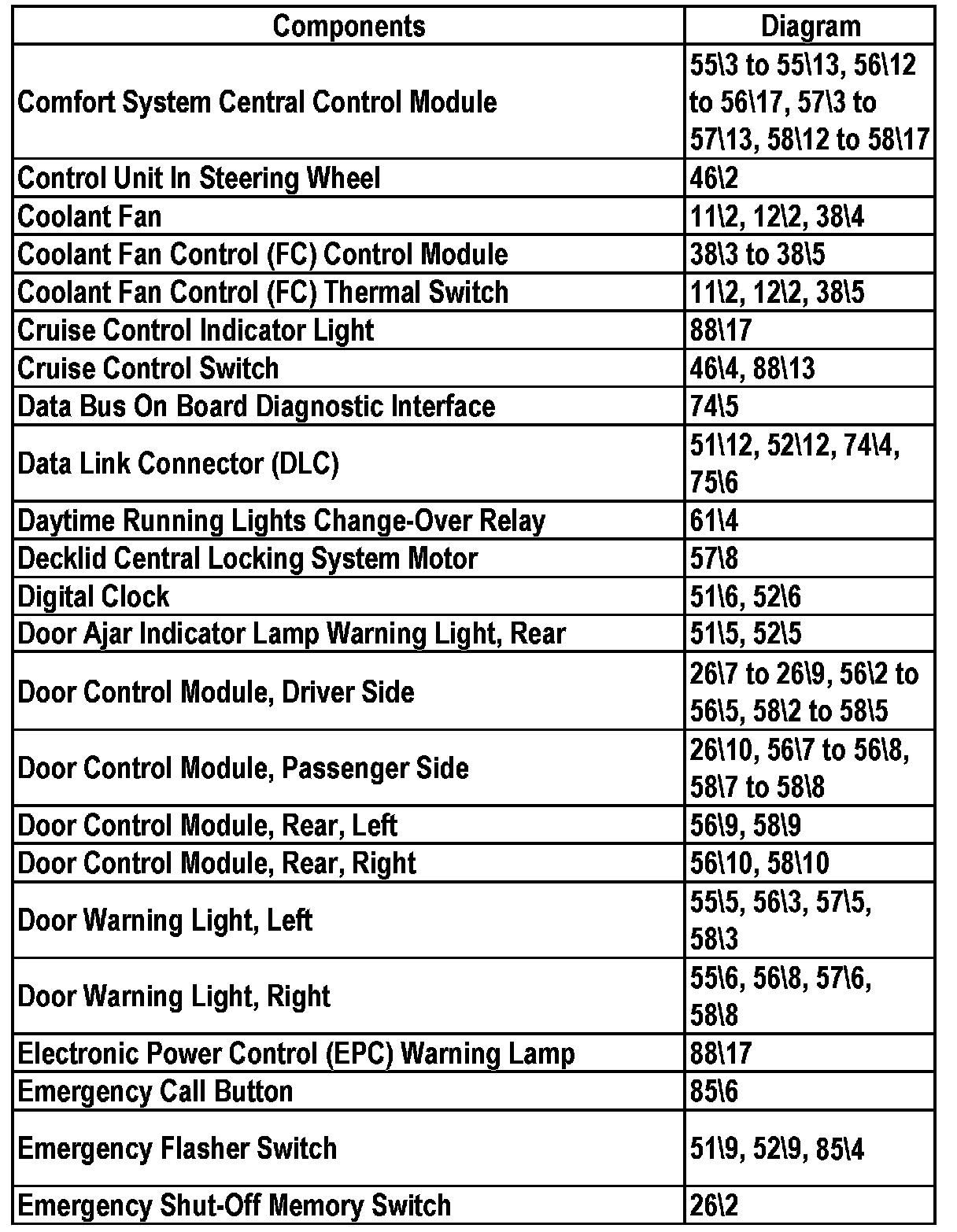

Co - Em:

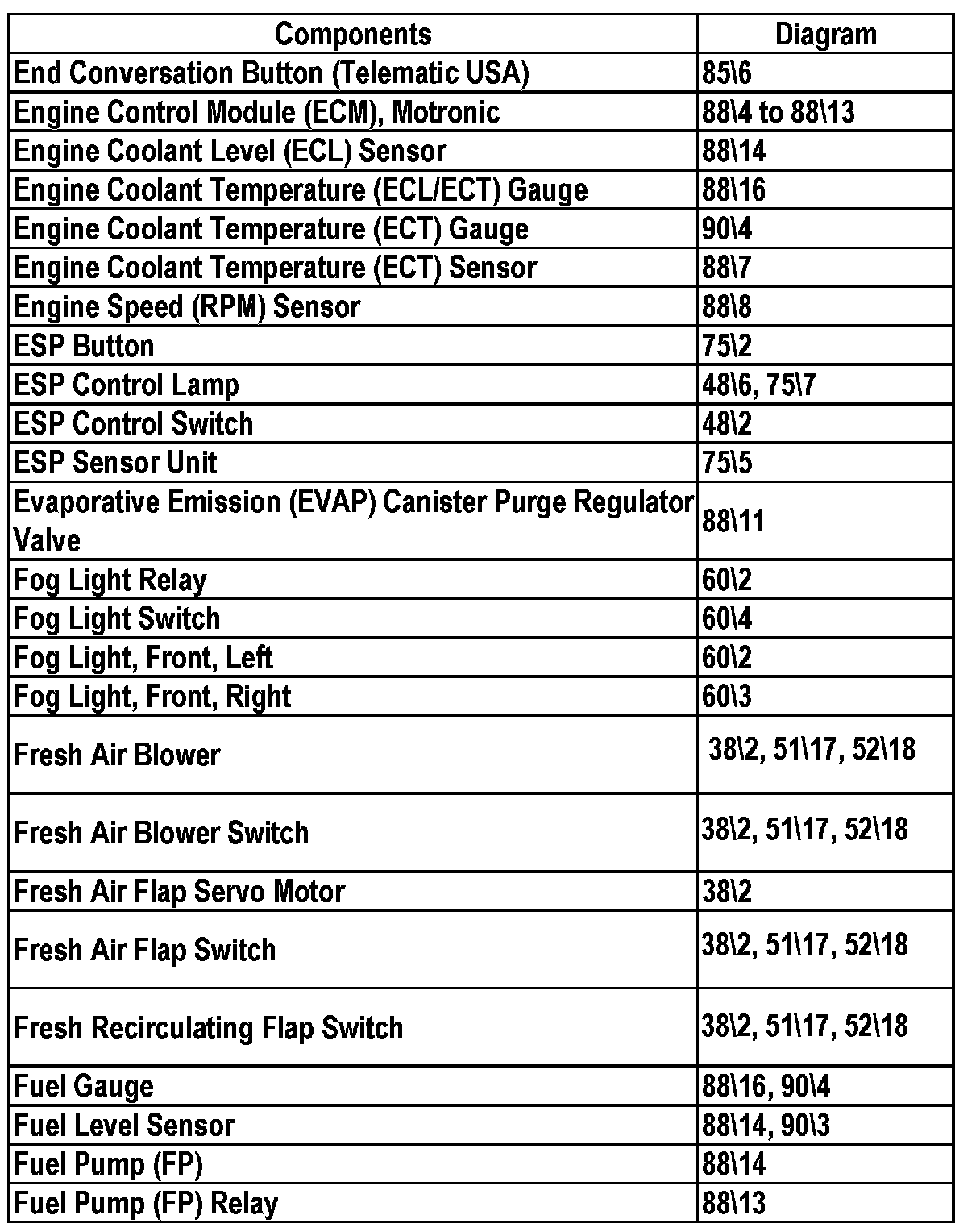

En - Fu:




Fu - He:




Hi - Li:

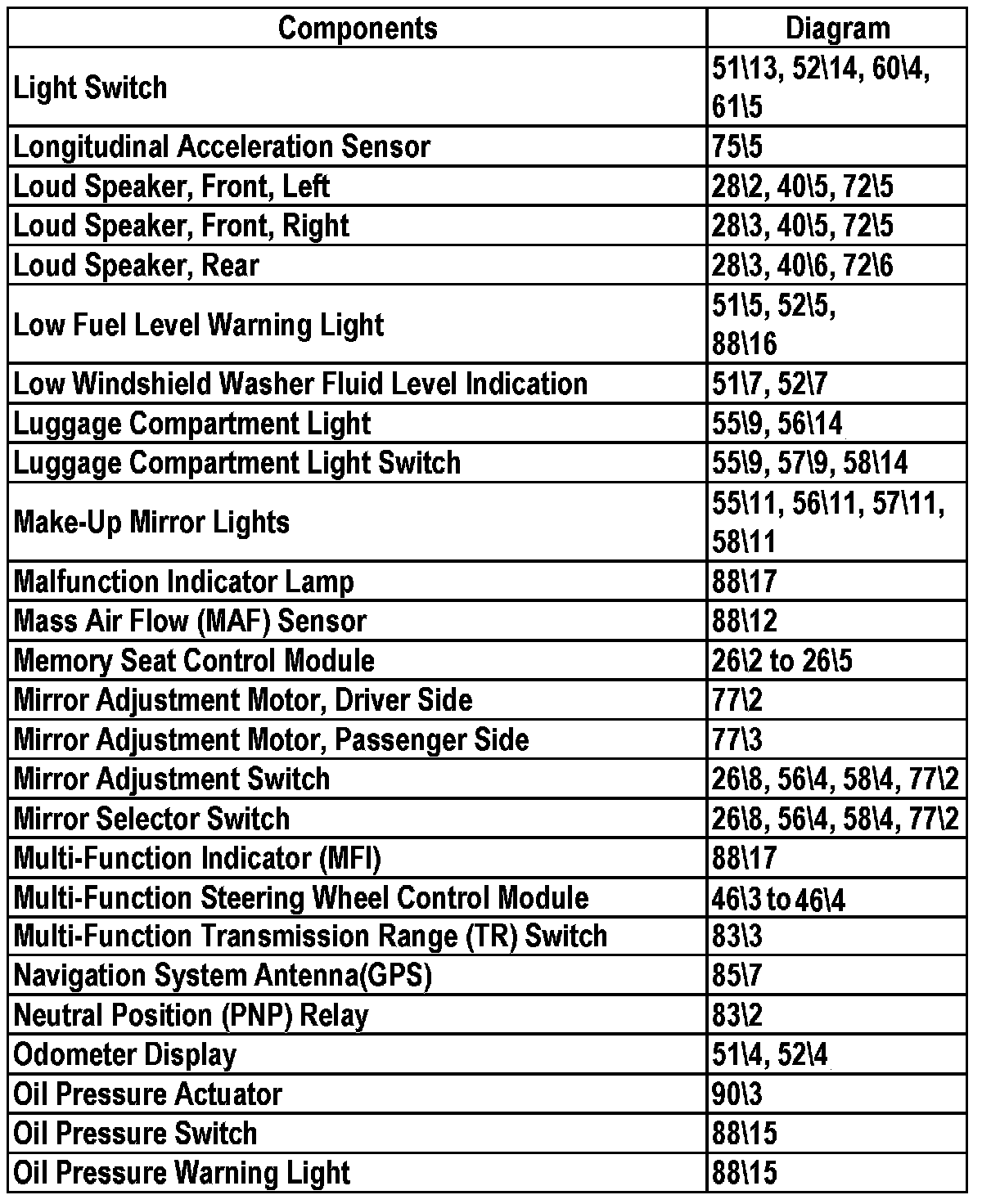

Li - Oi:




Ou - Re:

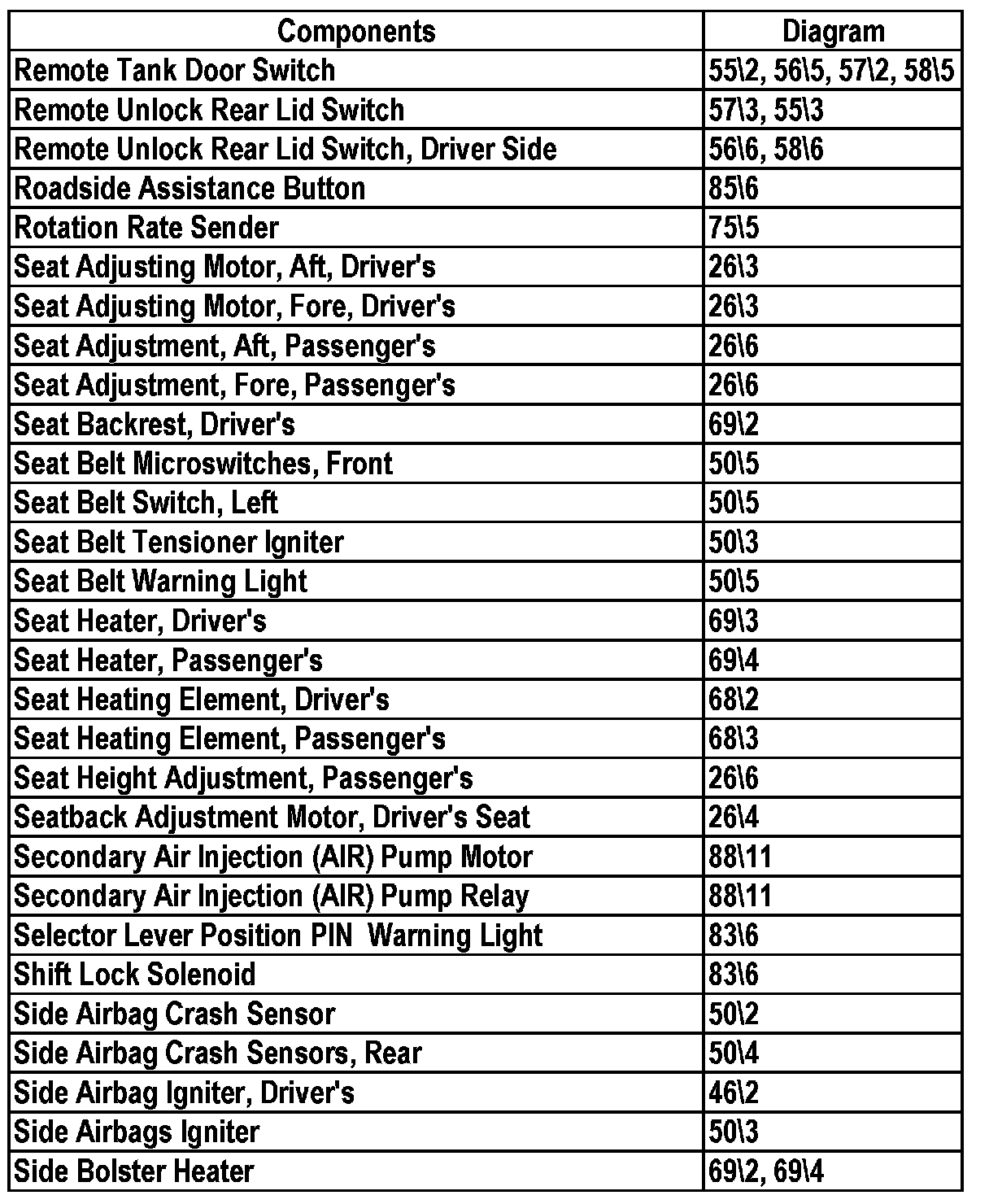

Re - Si:

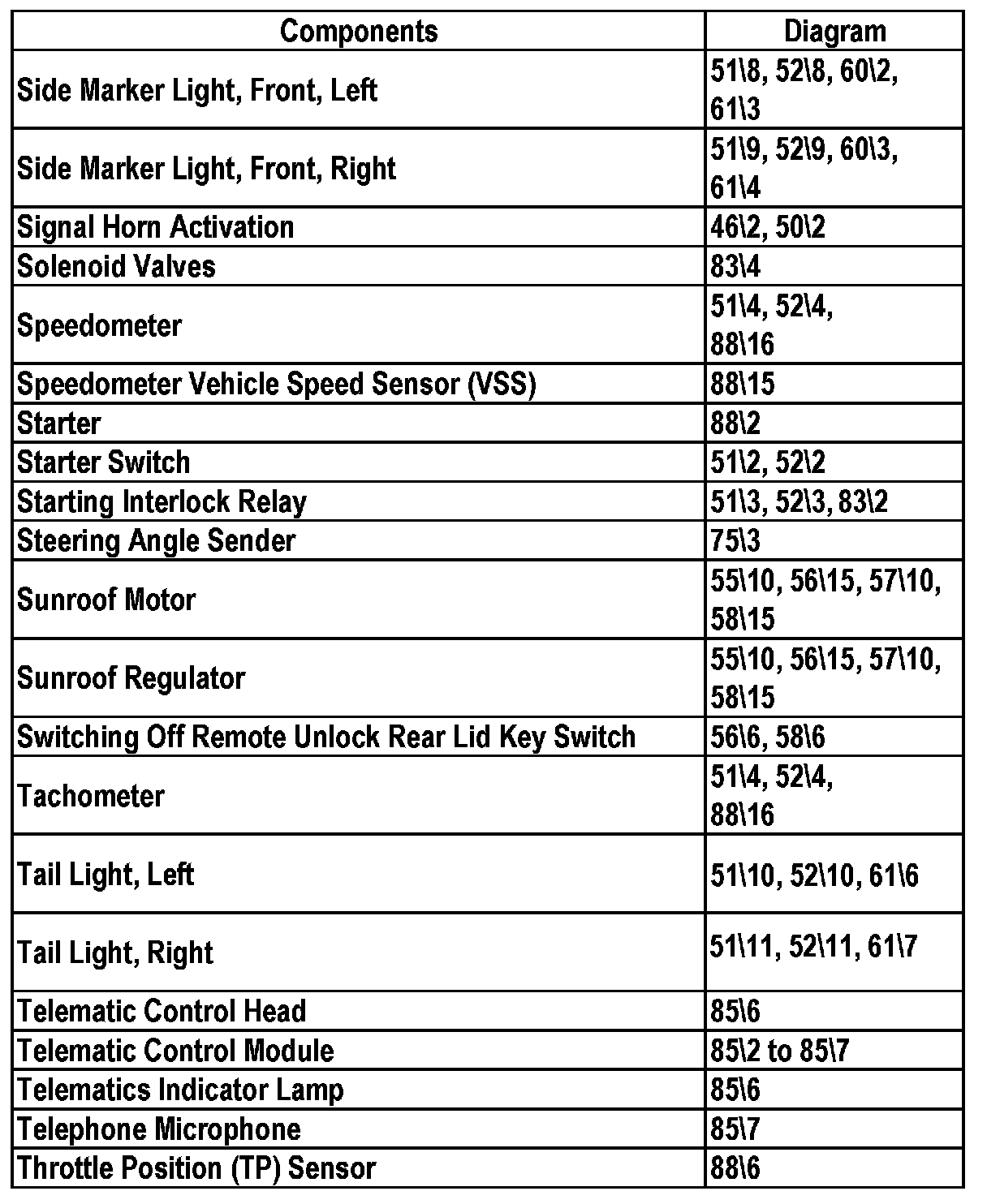

Si - Th:

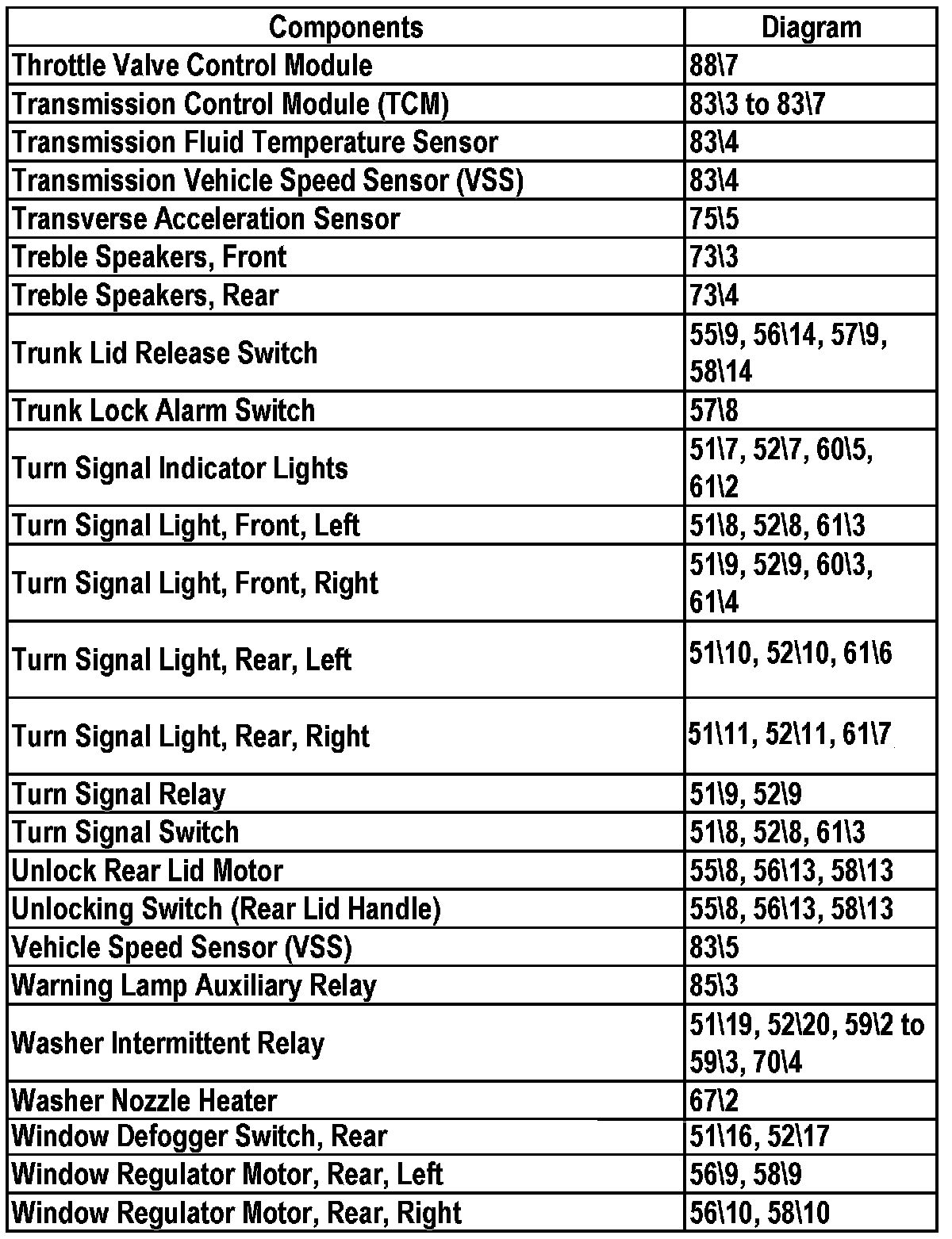

Th - Wi:

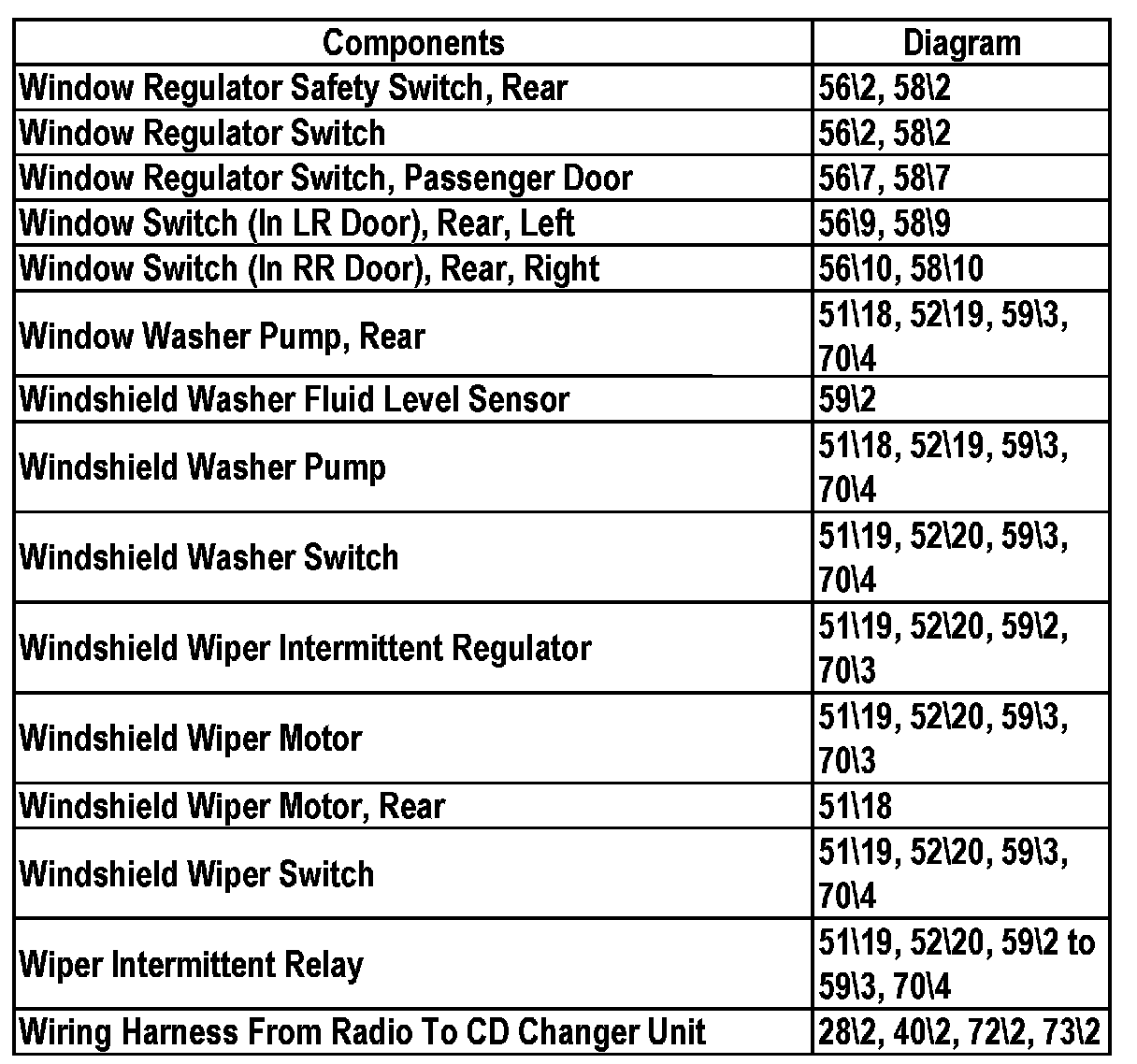

Wi - Wi:
