Satellite Radio (R146)

Satellite Radio (R146)

The satellite radio is under the rear shelf.

Removing

- Remove the rear shelf.

- Remove the 4 screws - arrows - (4 Nm).

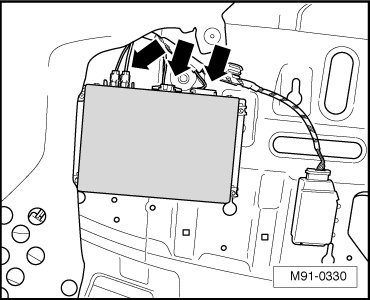

- Disconnect the connectors - arrows - on the satellite radio.






Installing

Install in reverse order of removal.
