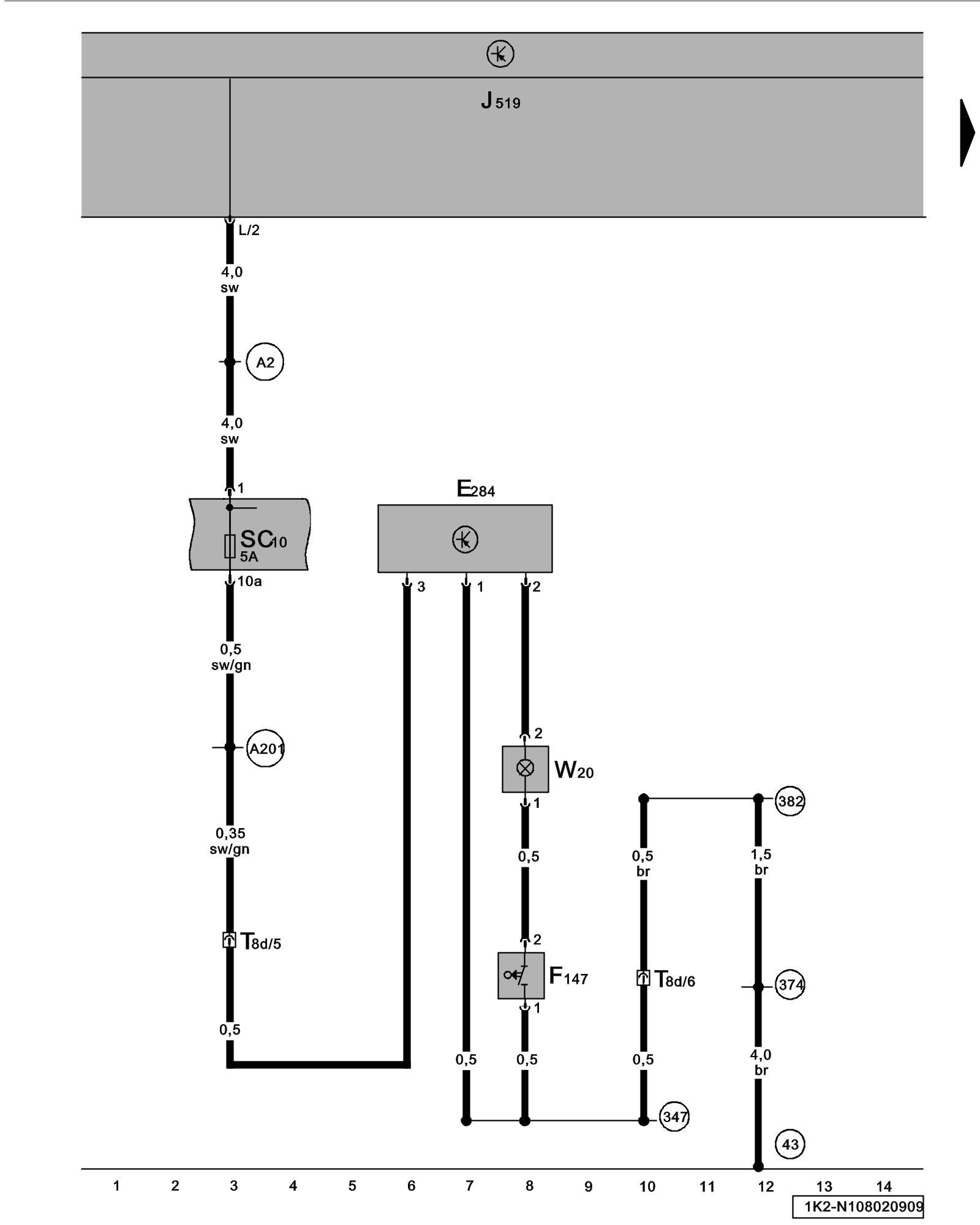

Diagram 108/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Garage Door Opener Control Head, Driver's Make-Up Mirror Light Contact Switch, Vehicle Electrical System Control Module, Driver's Illuminated Make-up Mirror Light





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E284 - Garage Door Opener Control Head

F147 - Driver's Make-Up Mirror Light Contact Switch

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

SC10 - Fuse 10 (on fuse panel C) Locations

T8d - 8-Pin Connector

W20 - Driver's Illuminated Make-up Mirror Light

(43) - Ground Connection (on right lower A-pillar)

(347) - Ground Connection (in roof wiring harness)

(374) - Ground Connection 9 (in main wiring harness)

(382) - Ground Connection 17 (in main wiring harness)

(A2) - Plus Connection (15) (in instrument panel wiring harness)

(A201) - Plus Connection 6 (15a)(in instrument panel wiring harness)
