Turbocharger: Tools and Equipment

Special Tools

Special tools, testers and auxiliary items required

• Adapter (VAG 1687/5)

• Ultrasonic measuring device (VAG 1842)

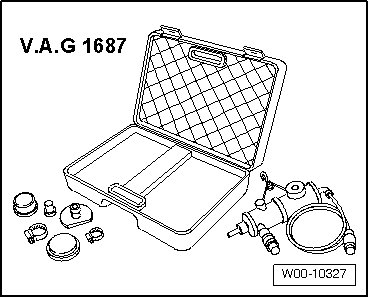

• Testing unit for turbocharger (VAG 1687)









Special tools, testers and auxiliary items required

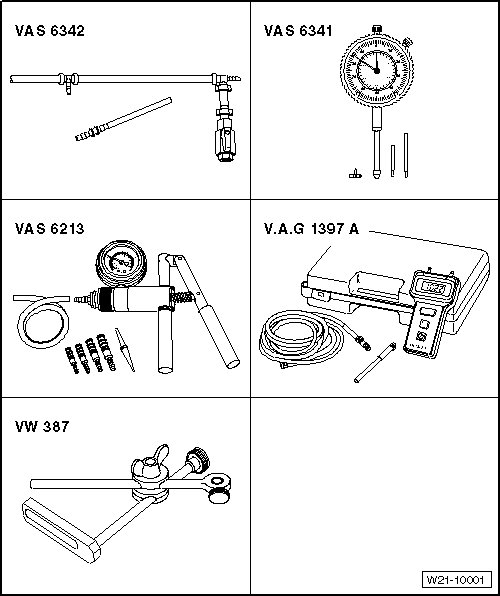

• Dial gauge holder (VW 387)

• Hand vacuum pump (VAS 6213)

• Pressure control valve (VAS 6342)

• Turbocharger tester (VAG 1397A)

• Dial gauge (0-30 mm) (VAS 6341/1)

• Dial gauge extension (30 mm) (VAS 6341/3)

• Flat pickup (VAS 6341/4)





Special tools, testers and auxiliary items required

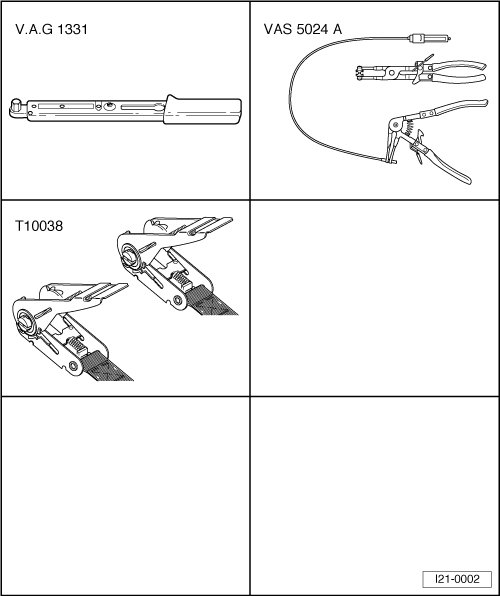

• Torque wrench (5-50 Nm) (VAG 1331)

• Spring type clip pliers (VAS 5024A)

• Tensioning strap (T10038)
