Premium 5.5 Satellite Overview

Radio / Navigation Systems

Premium 5.5 Satellite Overview

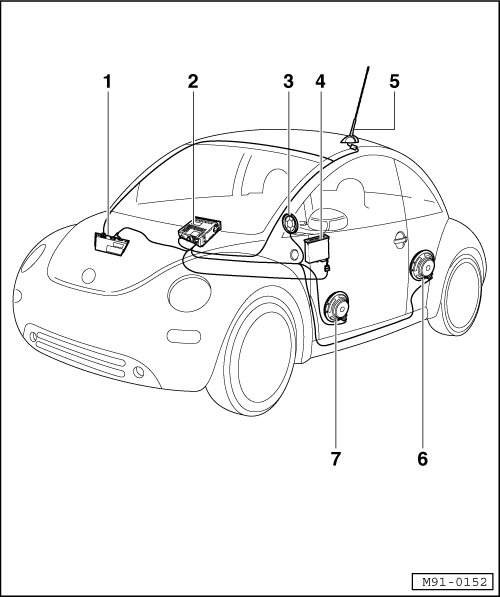

Left side speaker layout shown. Right side speaker layout is identical





1 - Satellite Radio -R146-
• Located in the front passenger footwell
• Component location same for all the systems (if applicable)

2 - Radio -R-
• Located in the center console

3 - Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-
• Located in the A-pillar trims

4 - CD Changer -R41-
• Located inside the armrest

5 - Antenna -R11-
• Integrated with Satellite Antenna -R170- and Satellite Tuner Antenna -R172-
• For the Premium 5.5 Monsoon Satellite location => [ Premium 5.5 Monsoon Satellite Overview ] Premium 5.5 Monsoon Satellite Overview
• Antenna Systems Overview location => [ Antenna Systems Overview ] Antenna Systems Overview

6 - Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-
• Located in the rear side panels

7 - Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-
• Located in the doors
