Diagram 709/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

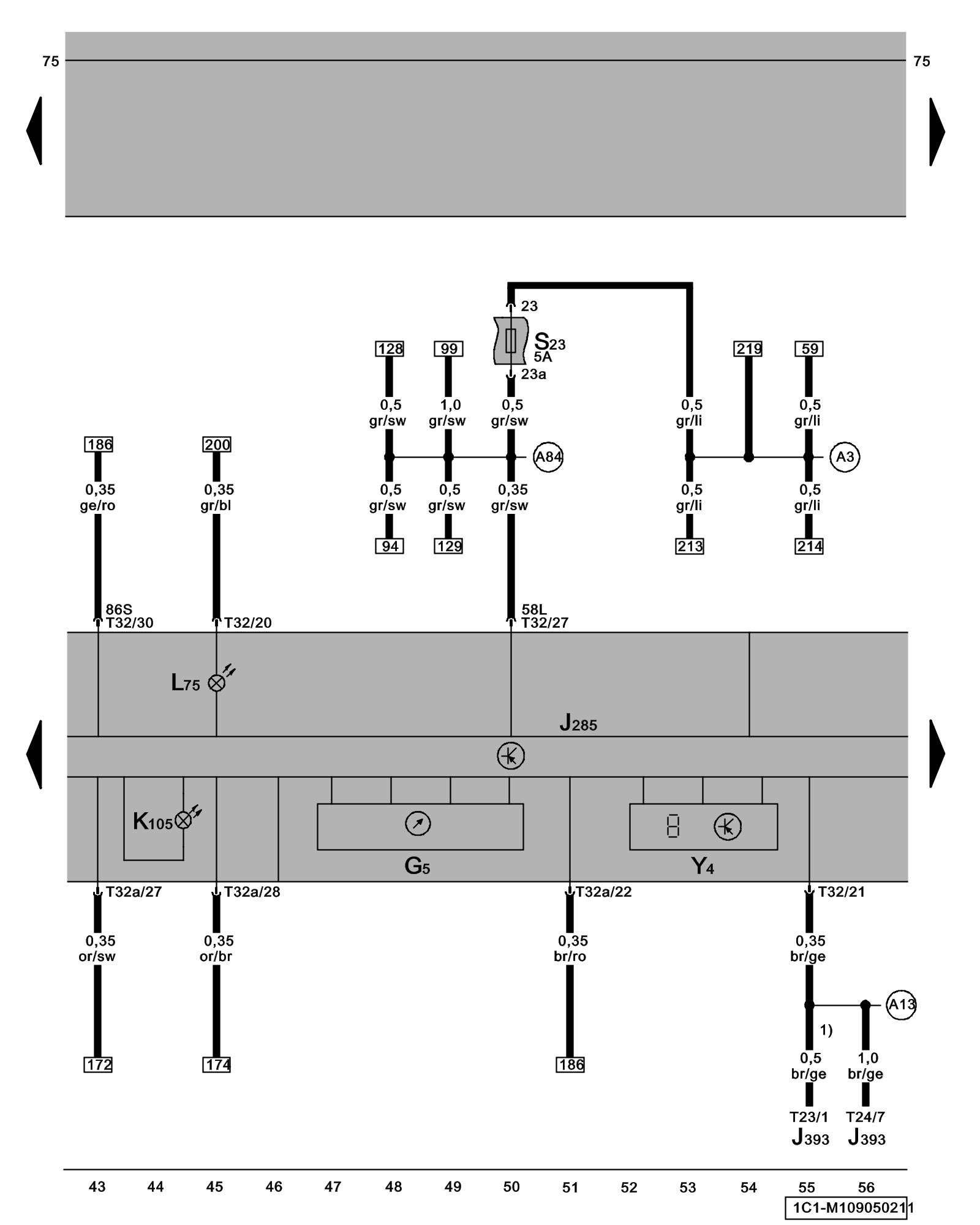

Instrument Cluster Control Module, Fuel Reserve Warning Lamp, Odometer Display





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G5 - Tachometer

J285 - Instrument Cluster Control Module

J393 - Comfort System Central Control Module Central Locking Systems

K105 - Fuel Reserve Warning Lamp

L75 - Digital Display Illumination

S23 - Heater Fuse

T23 - 23-Pin Connector, on J393

T24 - 24-Pin Connector, on J393

T32 - 32-Pin Connector, blue, on instrument cluster

T32a - 32-Pin Connector, green, on instrument cluster

Y4 - Odometer Display

(A3) - Plus Connection (58) (in instrument panel wiring harness)

(A13) - Door Contact Switch Connection (in instrument panel wiring harness)

(A84) - Connection (58L) (in instrument panel wiring harness)

1) - Through June 2007

Previous Diagram 709/4 (Tracks 29-42)

Next Diagram 709/6 (Tracks 57-70)
