Crankshaft, Cylinder Block

Special Tools

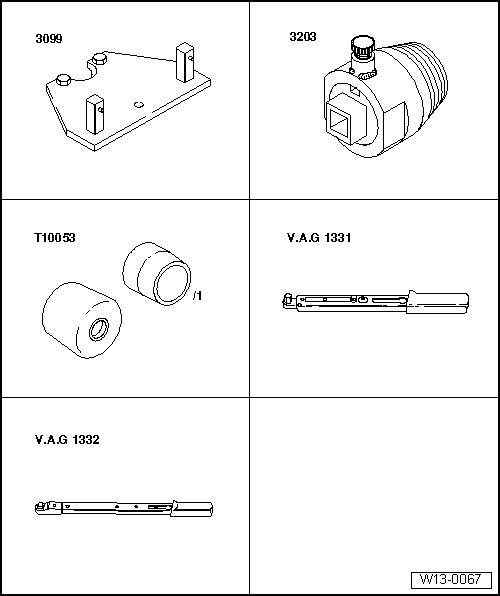

Special tools, testers and auxiliary items required

• Spur belt spreading (3099)

• Seal remover (3203)

• Assembly tool (T10053)

• Torque wrench (V.A.G 1331)

• Torque wrench (V.A.G 1332)

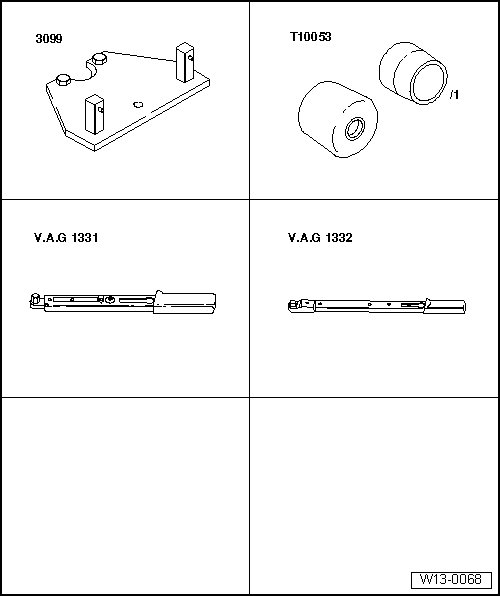

Special tools, testers and auxiliary items required

• Spur belt spreading (3099)

• Assembly tool (T10053)

• Torque wrench (V.A.G 1331)

• Torque wrench (V.A.G 1332)





Special tools, testers and auxiliary items required

• - 1 - Internal puller (Kukko 21/2 )

• - 4 - Counter-support (Kukko 22/1 )

• Centering mandrel (3176) or Drift (VW 207 C)

Special tools, testers and auxiliary items required

• Drift (T10060 A)

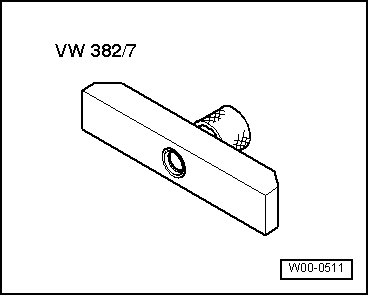

• Measuring bar (VW 382/7)





• Magnetic plate 50 mm diameter (VW 385/17)
