Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Description and Operation
>>
Instrument Cluster & Warning / Indicator Lamps
Instrument Cluster & Warning / Indicator Lamps
Instrument Cluster & Warning / indicator lamps

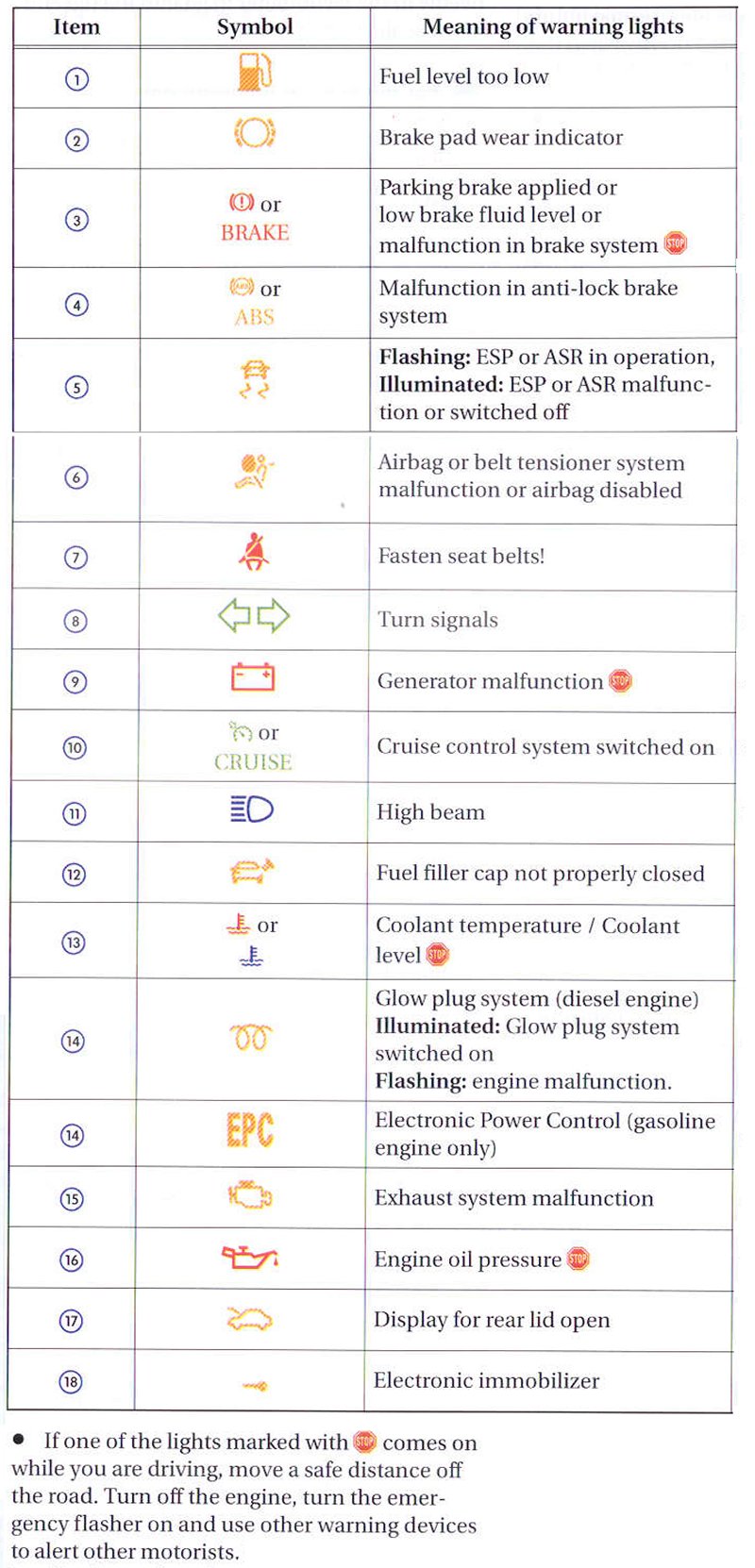

Legend
Expanded Definitions
