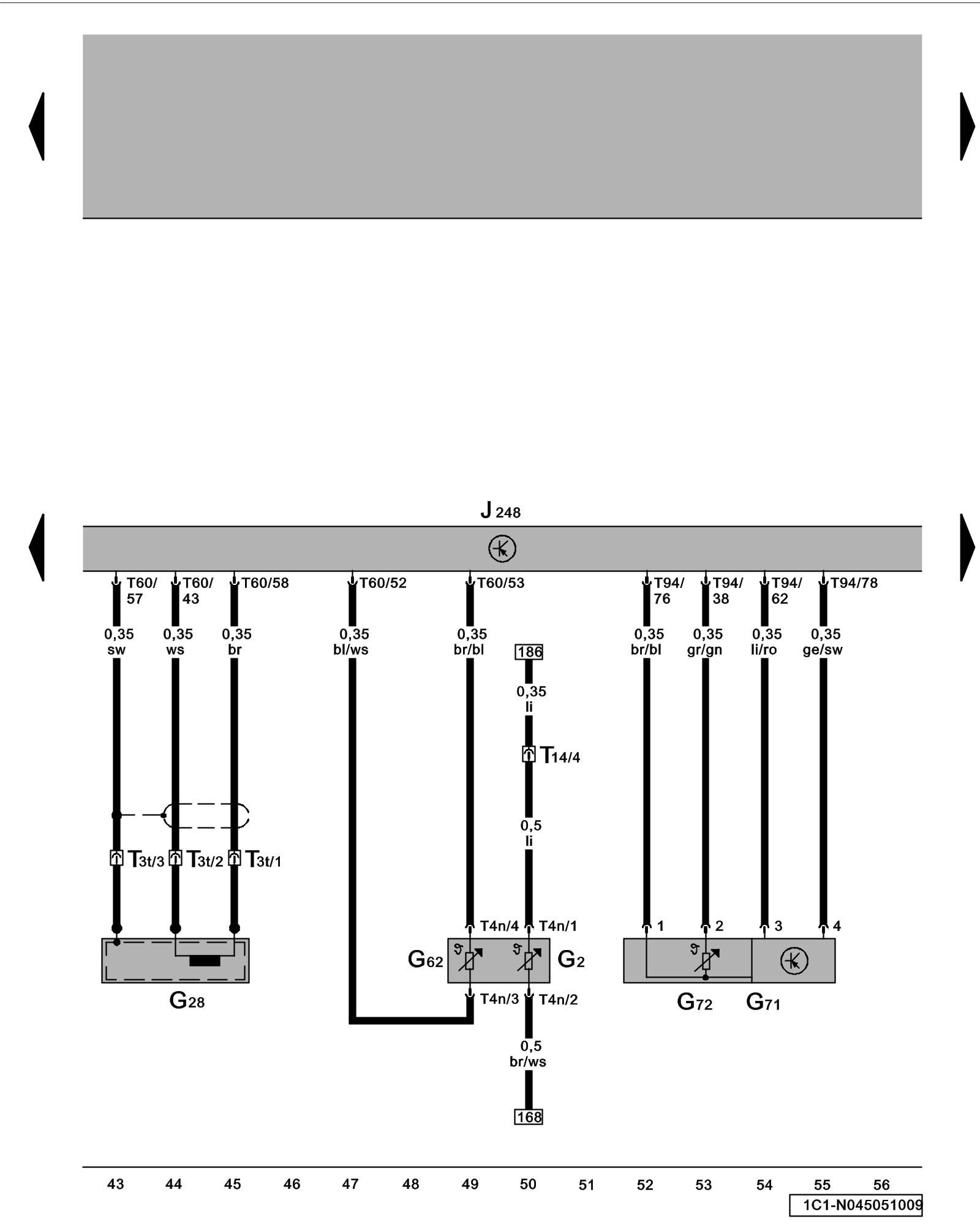

Diagram 645/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine Coolant Temperature (ECT) Sensor, Engine Speed (RPM) Sensor, Engine Coolant Temperature (ECT) Sensor, Manifold Absolute Pressure (MAP) Sensor, Intake Air Temperature (IAT) Sensor,Diesel Direct Fuel Injection (DFI) Engine Control Module (ECM), in plenum chamber, center





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G2 - Engine Coolant Temperature (ECT) Sensor Locations

G28 - Engine Speed (RPM) Sensor Locations

G62 - Engine Coolant Temperature (ECT) Sensor Locations

G71 - Manifold Absolute Pressure (MAP) Sensor Locations

G72 - Intake Air Temperature (IAT) Sensor Locations

J248 - Diesel Direct Fuel Injection (DFI) Engine Control Module (ECM), in plenum chamber, center Locations

T3t - 3-Pin Connector, in engine compartment, front

T4n - 4-Pin Connector

T14 - 14-Pin Connector, near battery

T60 - 60-Pin Connector

T94 - 94-Pin Connector

(200) - Ground connection (shielding), in engine compartment wiring harness
