Fuel Supply

Special Tools





Special tools, testers and auxiliary items required

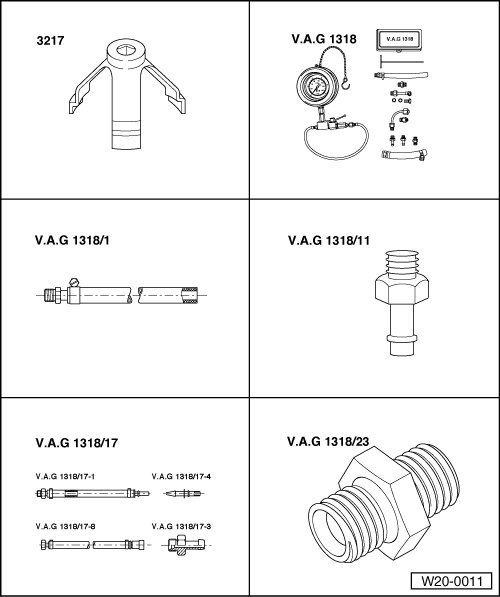

• Union nut tool (3217 )

• pressure gauge (V.A.G 1318)

• Adapter (V.A.G 1318/1)

• Adapter (V.A.G 1318/11)

• Pressure gauge adapter (V.A.G 1318/17)

• Double connection (V.A.G 1318/23)





Special tools, testers and auxiliary items required

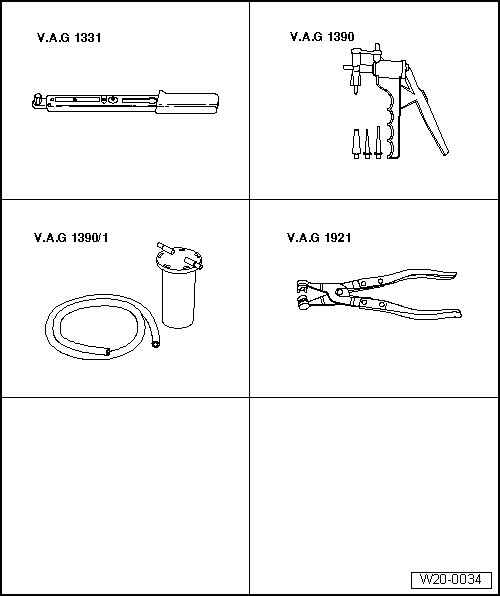

• Torque wrench (V.A.G 1331)

• Hand vacuum pump (V.A.G 1390)

• Hand vacuum pump reservoir (V.A.G 1390/1 )

• Hose clamp pliers (V.A.G 1921) or Pliers for spring clamps (VAS 5024A)

Special tools, testers and auxiliary items required

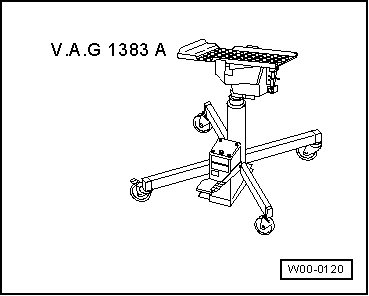

• Engine/transmission jack (V.A.G 1383 A)

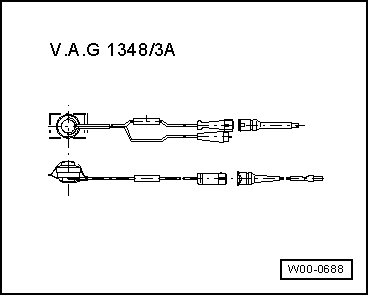

• Remote control connection (V.A.G 1348/3A)





• Voltage tester (V.A.G 1527B)

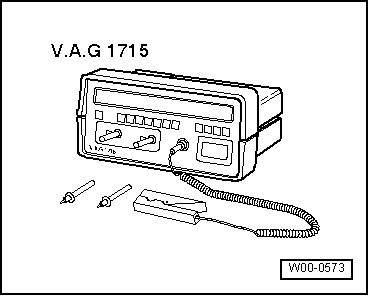

• Multi-meter (V.A.G 1715) or vehicle diagnosis, testing and information system (VAS 5051)





• Hand-held multi-meter (V.A.G 1526B)





• Connector test set (V.A.G 1594C)

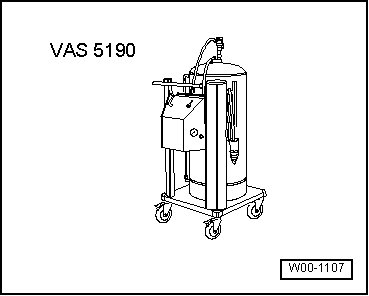

• Fuel extracting device (VAS 5190)





• Torque wrench (40 to 200 Nm) (V.A.G 1332)

• Pliers for spring clamps (VAS 5024 A) or hose clamp pliers (V.A.G 1921)





• Fuel extracting device (VAS 5190)

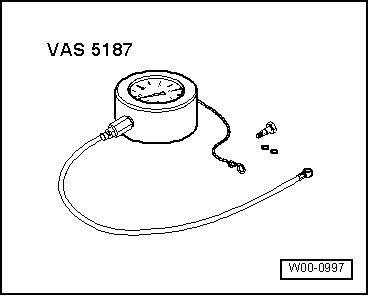

• Tandem pump tester (VAS 5187 )





• Vehicle diagnostic, testing and information system ( VAS 5051) with diagnostic cable (VAS 5051/5A ) or (VAS 5051/5A)
