System Specifications

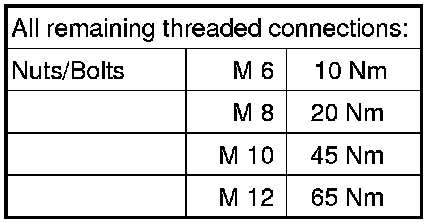

Fastener Tightening Specifications

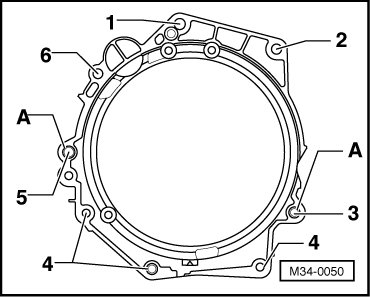

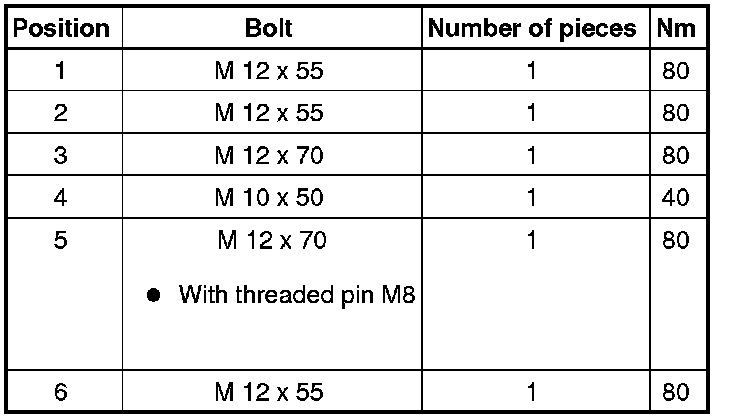

Transmission to engine





Replace bolts.





A Alignment bushing for centering

Transmission plate - 1 - to transmission









Transmission plate to transmission mount

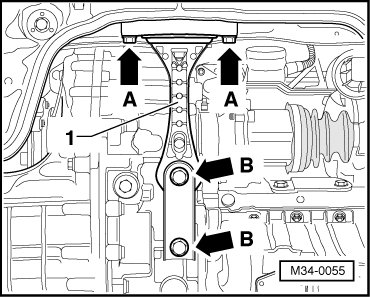

Pendulum support - 1 - to transmission and to subframe









• Install engine/transmission bearing free of tension.
