Direct Shift Gearbox 02E (DSG)

Transmission Systems

Direct Shift Gearbox 02E (DSG)







1 - Direct Shift Gearbox (DSG) Mechatronic -J743- => [ Valve Body ] See Image Below.
• Direct Shift Gearbox (DSG) Mechatronic -J743- is bolted on to transmission housing at front and covered by transmission oil pan
• Control module is integrated permanently on Direct Shift Gearbox (DSG) Mechatronic - J743-.

2 - Transmission Input Speed (RPM) Sensor -G182- and Clutch Oil Temperature Sensor -G509- => [ Transmission Input Speed (RPM) Sensor and Clutch Oil Temperature Sensor ] See Image Below.
• Bolted under the Direct Shift Gearbox (DSG) Mechatronic -J743- on transmission housing

3 - Selector Lever -E313- => [ Selector Lever ] See Image Below.
• Tiptronic Switch -F189- and Selector Lever Sensor System Control Module are integrated permanently in circuit board of shift mechanism
• Shift Lock Solenoid -N110-is located in shift mechanism
The following are located on the are located at the selector lever
and selector mechanism:
• Selector Lever Sensor System Control Module -J587-

• Tiptronic Switch -F189-

• Shift Lock Solenoid -N110- => [ Shift Lock Solenoid ] See Image Below.



Valve Body






- Valve body
• Direct Shift Gearbox (DSG) Mechatronic -J743- is integrated onto the Direct Shift Gearbox (DSG)

The following are secured to the valve body or integrated to the Direct Shift Gearbox (DSG) Mechatronic -J743-
• Solenoid Valve 1 -N88-

• Solenoid Valve 2 -N89-

• Solenoid Valve 3 -N90-

• Solenoid Valve 4 -N91-

• Solenoid Valve 5 -N92-

• Solenoid Valve 6 -N93-

• Solenoid Valve 9 -N282-

• Solenoid Valve 10 -N283-

• Automatic Transmission Pressure Regulating Valve 1 -N215-

• Automatic Transmission Pressure Regulating Valve 2 -N216-

• Automatic Transmission Pressure Regulating Valve 3 -N217-

• Automatic Transmission Pressure Regulating Valve 4 -N218-

• Automatic Transmission Pressure Regulating Valve 5 -N233-

• Automatic Transmission Pressure Regulating Valve 6 -N371-

• Temperature Sensor (in Control Module) -G510-

• Automatic Transmission Hydraulic Pressure Sensor 1 -G193-

• Automatic Transmission Hydraulic Pressure Sensor 2 -G194-

• Transmission Output Speed (RPM) Sensor -G195-

• Transmission Output Speed (RPM) Sensor 2 -G196-

• Gear Position Distance Sensor 1 -G487-

• Gear Position Distance Sensor 2 -G488-

• Gear Position Distance Sensor 3 -G489-

• Gear Position Distance Sensor 4 -G490-

• Driveshaft Speed Sensor 1 -G501-

• Driveshaft Speed Sensor 2 -G502-

• Transmission Fluid Temperature Sensor -G93-




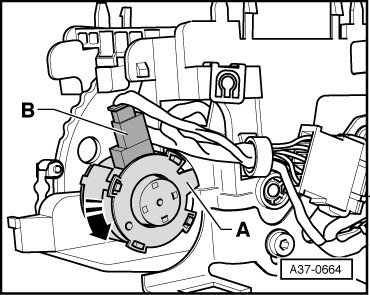

Transmission Input Speed (RPM) Sensor
and Clutch Oil Temperature Sensor






A - Transmission Input Speed (RPM) Sensor -G182- with Clutch Oil Temperature Sensor -G509-

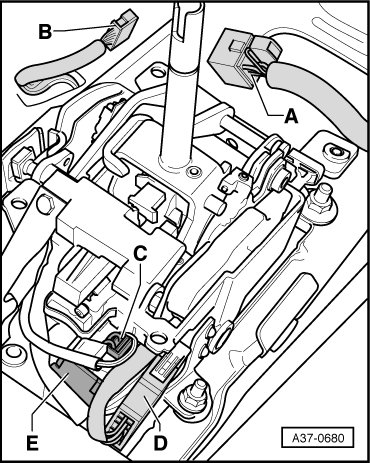

Selector Lever






• Selector Lever -E313-

• Selector Lever Sensor System Control Module -J587-

• Tiptronic Switch -F189-

• Shift Lock Solenoid -N110- => [ Shift Lock Solenoid ] See Image Below.





Shift Lock Solenoid






Arrow - Shift Lock Solenoid -N110-
