If Malfunction Remains After Performing All Steps, Replace Wiper/Washer Intermittent Relay J31 (production Control Number 377)

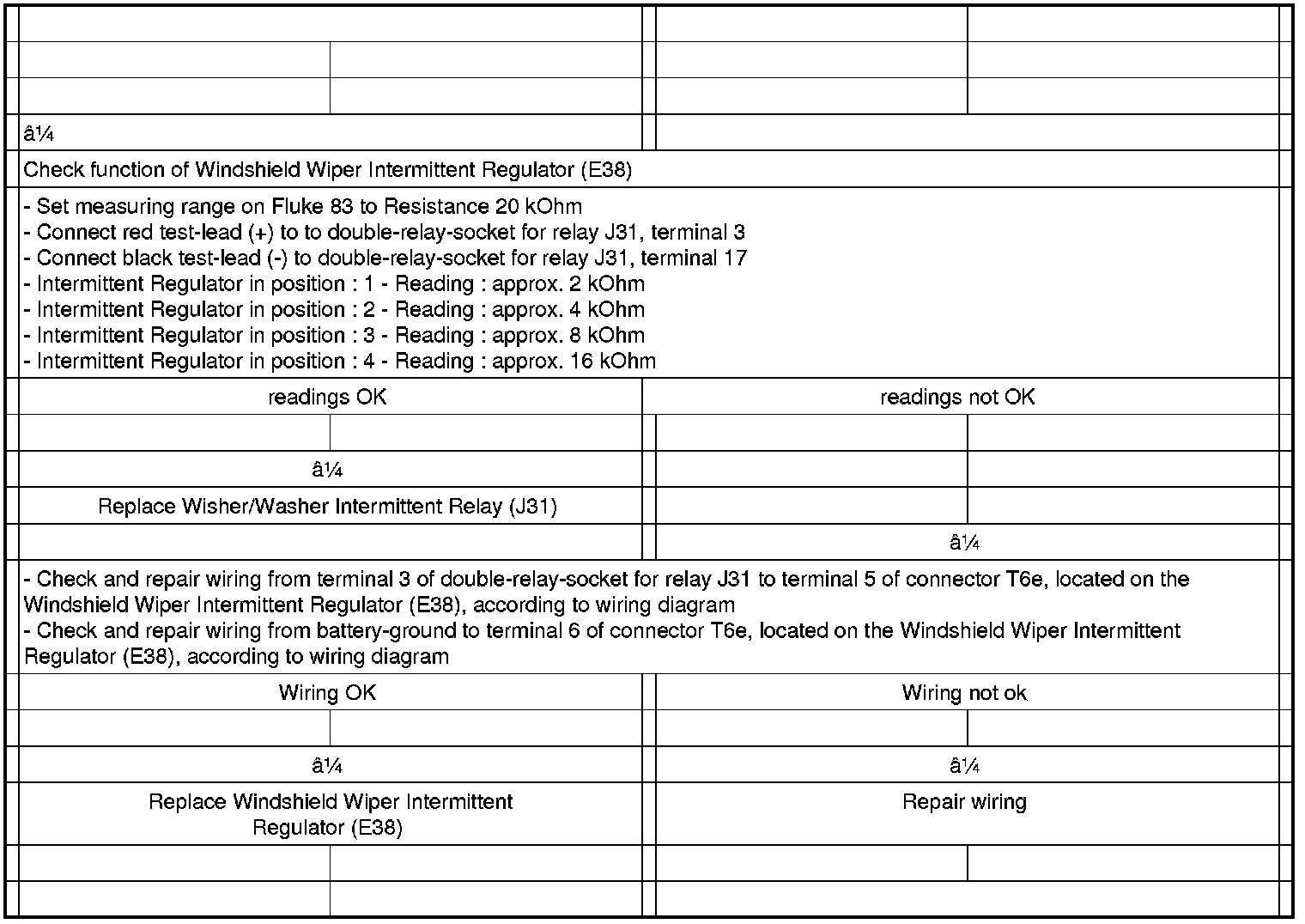

Checking Windshield Wiper/Washer System

If malfunction has not been eliminated after performing all steps, replace Wiper/Washer Intermittent Relay J31 (production control number 377) !


After repairing malfunction, perform test of Wiper/Washer System.
Troubleshooting starts on next page !
