Blower Motor Relay: Locations

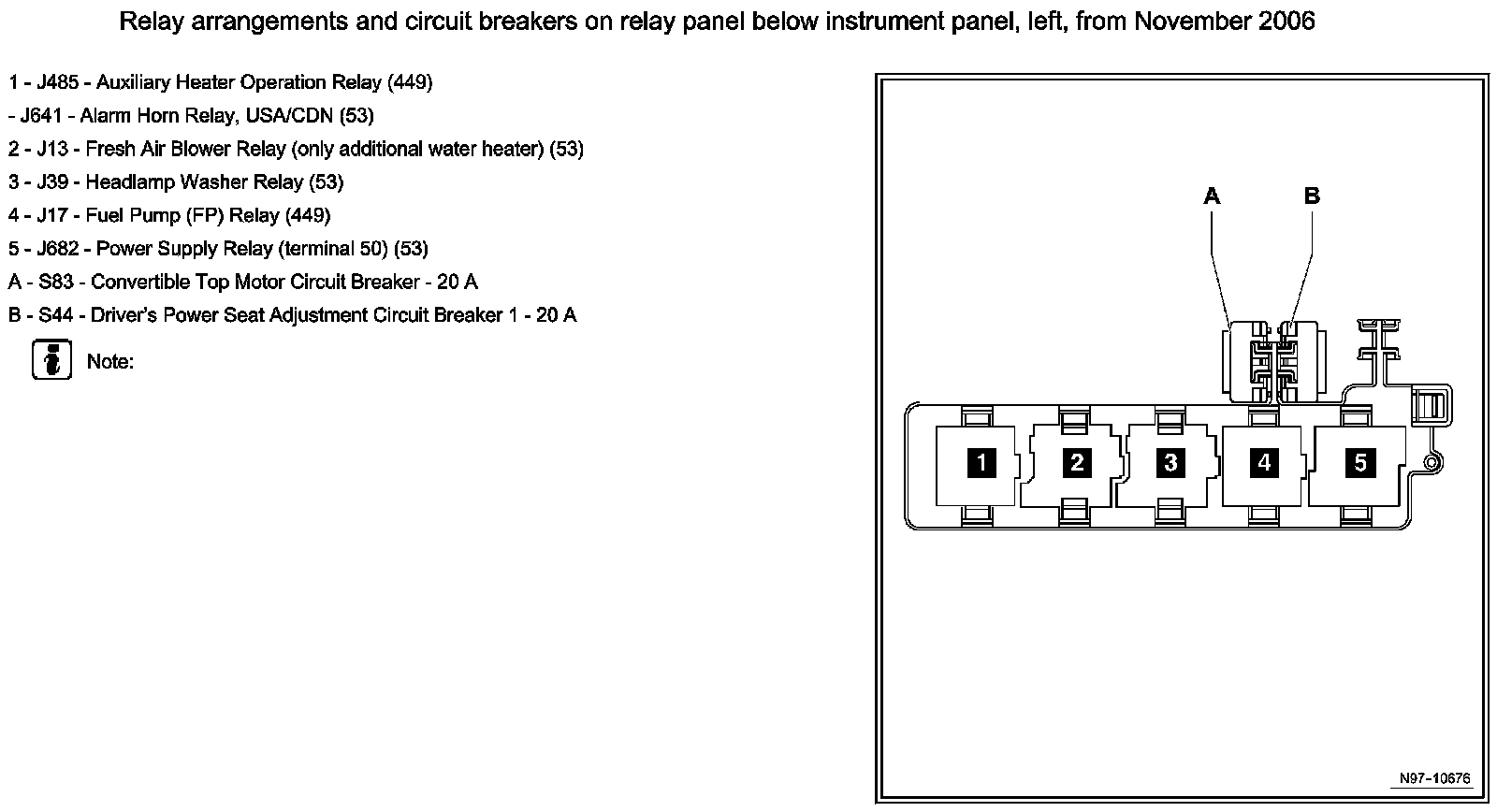

Relay Arrangements And Circuit Breakers On Relay Panel Below Instrument Panel, Left:
