Antenna System Overview - Premium Sound System - Wagon

- Component Locations: Radio / Navigation Systems

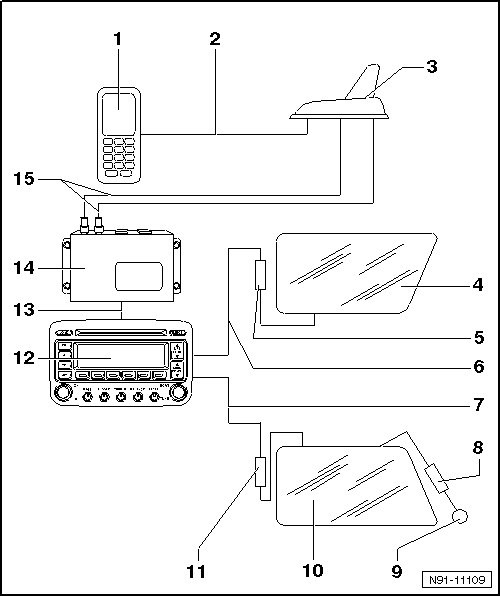

Antenna System Overview - Premium Sound System - Wagon



Note:
• -R111- and -R112- Antenna
Amplifiers not shown in the exploded view are for the Wagon with a Navigation
System only






1 - Cellular Telephone -R54-

2 - Antenna line
• From the telephone system to the roof antenna

3 - Telephone/Navigation System (GPS)/Auxiliary Heater Antenna -R66-
• Located on the rear of roof

4 - Side window antenna - Right
• Located at rear right window
• With antenna wires for wireless reception FM

5 - Antenna Amplifier -R24-
• Located at the left rear side window at the C-pillar
• Located at the right rear side window at the C-pillar
• Location view => [ Antenna Amplifier ] See Image Below.

6 - Antenna line
• From the right rear side window antenna to the radio

7 - Antenna line
• From the left rear side window antenna to the radio

8 - Antenna Amplifier -R24-
• Located at the left rear side window at the C-pillar
• Located at the right rear side window at the C-pillar
• Location view => [ Antenna Amplifier ] See Image Below.

9 - Connection for remote maintenance

10 - Side window antenna - Left
• Located at rear left window
• With antenna wires for wireless reception AM/FM plus an antenna wire for remote maintenance

11 - Antenna Amplifier -R24-
• Located at the left rear side window at the C-pillar
• Located at the right rear side window at the C-pillar
• Location view => [ Antenna Amplifier ] See Image Below.

12 - Radio -R-

13 - Connection line
• From the radio to the digital satellite radio tuner (audio signal line)

14 - Digital Satellite Radio Tuner -R190-

- Antenna line
• From the digital satellite radio tuner to the roof antenna


Antenna Amplifier






- - Antenna Amplifier -R24-
