"Apple" "iPOD" Cradle

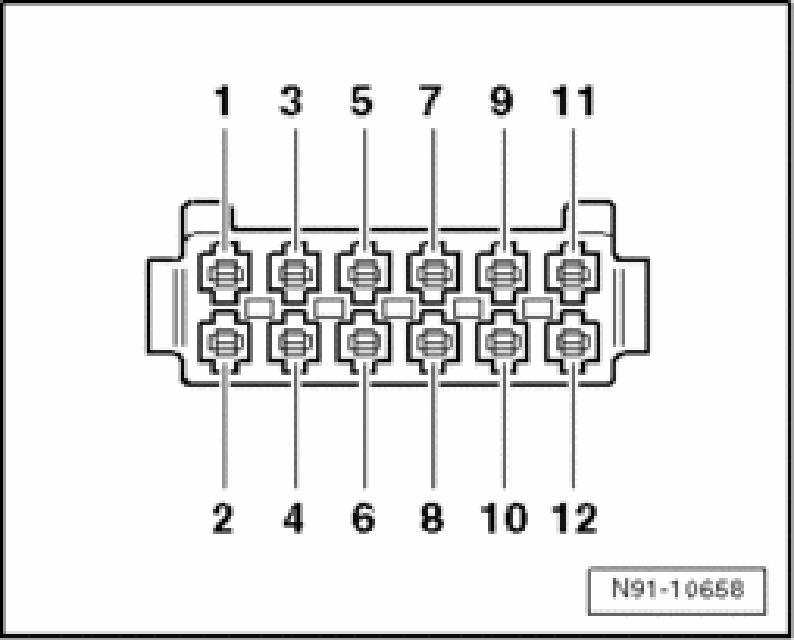

"iPOD" Cradle, Multi-pin Connector Assignments







1. DATA (Data exchange between iPOD and radio)
2. DATA-CLOCK (internal test protocol for monitoring data flow)
3. Voltage supply, terminal 31, negative
4. Radio control data (analog CD changer)
5. not in use
6. Voltage supply, positive
7. Audio signal output, right, positive
8. Control wire from radio, positive (analog CD changer)
9. Audio signal output, negative
10. Audio signal output, left, positive
11. not in use
12. not in use
