A/C Compressor Bracket, Removing And Installing

A/C Compressor Bracket -4- Cylinder Engine, Removing And Installing

Special tools, testers and auxiliary items required

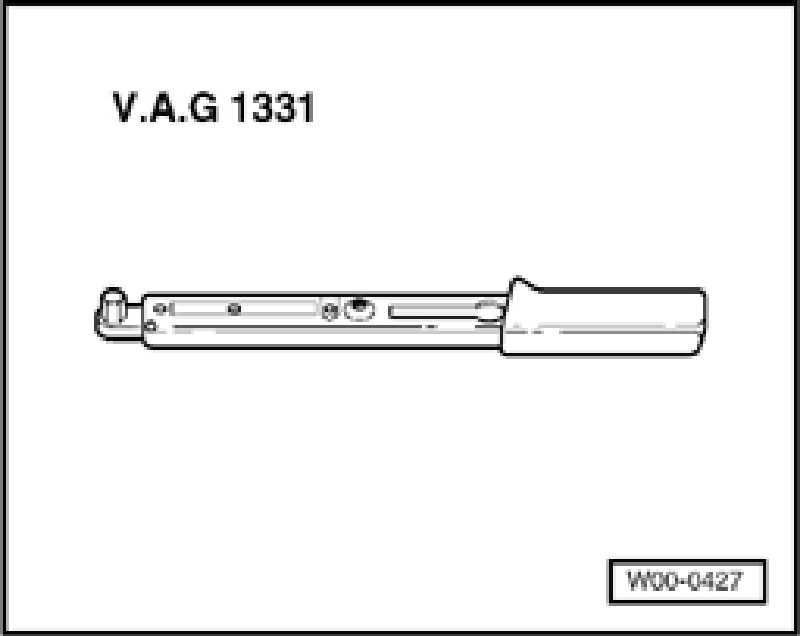

- Torque Wrench 5-50 Nm VAG1331

NOTE:
- The auxiliary component bracket for A/C compressor and ancillary parts can be removed and installed without opening the refrigerant circuit.
- To remove the ribbed belt.







1 - Cylinder collar bolt M10x45
- Alignment bore
- 2.0L Turbo FSI-engine: 40 Nm
2 - Cylinder collar bolt M10x45
- 2.0L Turbo FSI-engine: 40 Nm
3 - Cylinder collar bolt M10x45
- 2.0L Turbo FSI-engine: 40 Nm
4 - Cylinder collar bolt M10x45
- 2.0L Turbo FSI-engine: 40 Nm
5 - A/C compressor
6 - Hex bolts M8x100
- 3x
- 25 Nm
7 - Cylinder collar bolt M10x45 Alignment bore
- 2.0L Turbo FSI-engine: 40 Nm
8 - Cylinder collar bolt M10x45
- 2.0L Turbo FSI-engine: 40 Nm
9 - Dowel sleeves
- 2x
- Ensure proper seating between auxiliary component bracket and A/C compressor
10 - Auxiliary component bracket for A/C compressor
No. on auxiliary component bracket 06F 903 143 E/F

Removing
- Remove generator
- Loosen A/C compressor, unscrew hex-bolts -6-. Remove A/C compressor from auxiliary component bracket and secure to body with appropriate material (e.g. welding wire)
- Unscrew bolts -1- to -4- and -7- and -8- and remove auxiliary component bracket -10- from cylinder block.

Installing
- Always observe tightening torque of mounting bolts:

- Tighten cylinder collar bolt, items -1- (alignment bore), -7- (alignment bore), -4-, -8-, -3- and -2- in succession.







Securing A/C compressor to body
If A/C compressor is removed and refrigerant circuit not opened, A/C compressor must be secured to body using appropriate material, a welding wire for example.

Make sure that coolant hoses remain on A/C compressor without tension for this.

NOTE:
- When installing the belt ensure it is correctly seated in the ribbed belt pulley.
- Last, install ribbed belt over ribbed belt pulley of A/C compressor.
