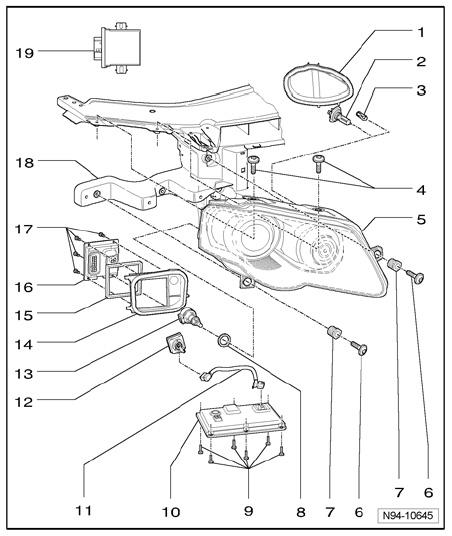

Main Headlamps With HID Lamps and Cornering Lamps, Assembly Overview

Main Headlamps With HID Lamps And Cornering Lamps, Assembly Overview

NOTE: After performing work which can affect headlamp adjustment, check adjustment and correct headlamps if necessary.







1 - Cover
2 - Left Cornering Lamp L148 or Right Cornering Lamp L149
- Bulb H7 12 V, 55 W
3 - Left Parking Lamp M1 and Right Parking Lamp M3
- Lamp 12V, BLUE W 5W
4 - Screws
- 2Nm
5 - Headlamp
- Headlamp position, correcting
- Headlamps, retrofitting for left-/right hand traffic
- Perform basic setting of headlamp
6 - Screws
- 8Nm
7 - Adjustment bushings
- Headlamp position, correcting
8 - Clamping ring
9 - Screws
10 - Left High-intensity Gas Discharge Lamp Control Module J343 and Right High-intensity Gas Discharge Lamp Control Module J344
11 - Wire for gas-discharge lamp
12 - High intensity gas discharge lamp L13 and High intensity discharge lamp L14 ("Bi-Xenon")
- TypeD1S, 35 W
13 - Left Headlamp Beam Adjustment Motor V48 and Right Headlamp Beam Adjusting Motor V49
14 - Cap
15 - Gasket
16 - Left Headlamp Power Output Stage J667 or Right Headlamp Power Output Stage J668

NOTE: After installing a new headlamp power output stage, Headlamp Range/Cornering Lamp Control Module J745 must be coded and then basic setting of headlamps must be performed.

17 - Screws
18 - Body cross section
19 - Headlamp Range/Cornering Lamp Control Module J745
- Coding
- Output Diagnostic Test Mode (DTM)
- Adapting

NOTE: If Headlamp Range/Cornering Lamp Control Module J745 is coded, headlamp basic setting must then be performed.
