09M, 6 Speed FWD A/T

Electrical/electronic components and component locations 09M, 6 Speed FWD A/T





1 - Transmission Control Module (TCM) J217

2 - Engine Control Module (ECM)

3 - Multi-Function Transmission Range (TR) Switch F125

4 - Valve body

5 - Wiring harness, 8-pin

6 - Transmission Fluid Temperature Sensor G93

7 - Wiring harness, 14-pin

8 - Electronic ignition lock D9

9 - Ignition key

10 - Transmission Input Speed (RPM) Sensor G182

11 - Transmission Output Speed (RPM) Sensor G195

12 - Shift Lock Solenoid N110

13 - Tiptronic Switch F189

14 - Power Supply Relay (terminal 50) J682

15 - Data Link Connector (DLC)

16 - Transmission Range (TR) Display Y6





Transmission Control Module (TCM) J217 - arrow -
Component location: Control module is located in left front wheel housing.
- To remove and install, wheel housing liner must be removed.





Multi-Function Transmission Range (TR) Switch F125
Component location: The multi-function switch is located on upper side of transmission.





Valve body
Component location: Valve body is bolted on to transmission housing below and covered by transmission oil pan.

Solenoid valves N88 and N89 as well as pressure control valves N90, N91, N92, N93, N282 and N283 are secured to valve body.





Wiring harness, 8-pin
^ Wiring harness for sensors
^ With integrated Transmission Fluid Temperature Sensor G93 - arrow -

Component location: Wiring harness is secured to valve body in transmission.





Wiring harness, 14-pin
^ Wiring harness for solenoid valves
Component location: Wiring harness is secured to valve body in transmission.





Electronic ignition lock D9
Component location: Ignition lock - 1 - is installed beside steering column in instrument panel.
- 2 - ignition key

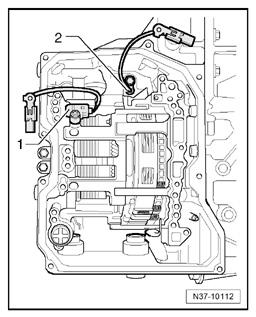

Transmission Input Speed (RPM) Sensor G182 and Transmission Output Speed (RPM) Sensor G195
Component location: Sensors are installed above valve body in transmission housing.
1 - Transmission Input Speed (RPM) Sensor G182
2 - Transmission Output Speed (RPM) Sensor G195





Tiptronic Switch F189
Component location: The Tiptronic switch is integrated in selector mechanism.

For vehicles with multi-function steering wheel, buttons on steering wheel and corresponding wire connections must be checked.





Data Link Connector (DLC)
Component location: Data Link Connector (DLC) - arrow - is located under left driver-side storage compartment





Transmission Range (TR) Display Y6
Component location: In instrument cluster
