Windshield Washer Relay: Locations

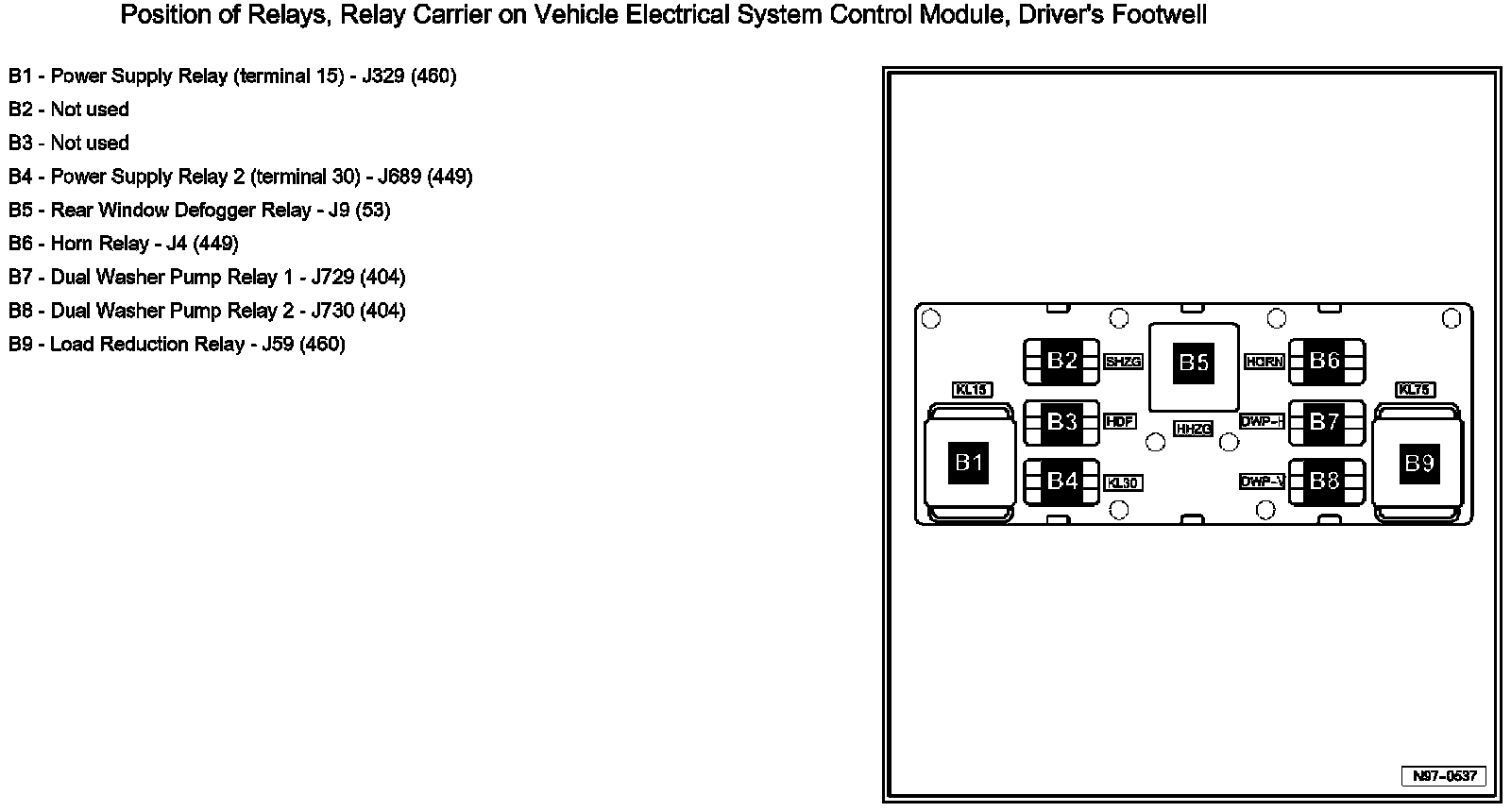

Position Of Relays, Relay Carrier On Vehicle Electrical System Control Module, Driver's Footwell:
