Cabin Air Filter / Purifier: Service and Repair

Dust and Pollen Filter

• With or without EVAP canister, refer to => [ Dust and Pollen Filter with Activated Charcoal Insert ] Description and Operation.

• Different versions depending on the vehicle version and equipment level.

• Follow the replacement intervals.

Removal

- Remove the plastic screws - 2 - and the partition- 1 -.

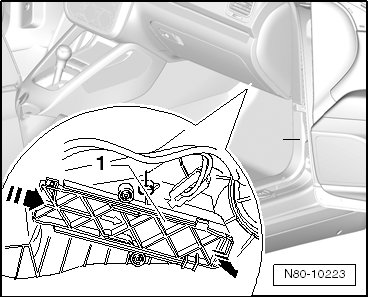

- Release cover - 1 - in direction of arrow.

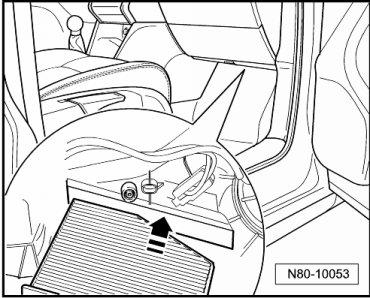

- Remove dust and pollen filter downward out of heater.

Installation

Install in reverse order of removal.






• Note installation position of dust and pollen filter.
