Engine Control - ECM Update For DTC P0601

01 09 18

September 29, 2009

2014077 Supersedes T.B. Group 01 number 08-31 dated Oct. 31, 2008 to update RVU instance number in Control Module table.





Vehicle Information

Condition

Update Programming to Eliminate DTC P0601 Stored in DTC Memory

NOTE:
Discard CD Literature Number W4220LTFSIP0601.

This Technical Bulletin addresses the following Diagnostic Trouble Code (DTC) on all 2006 - 2007 vehicles equipped with a 2.0L TFSI engine.





Technical Background





Production Solution
A change to ECM software was completed in the factories as of November 2006.

Service

NOTE:

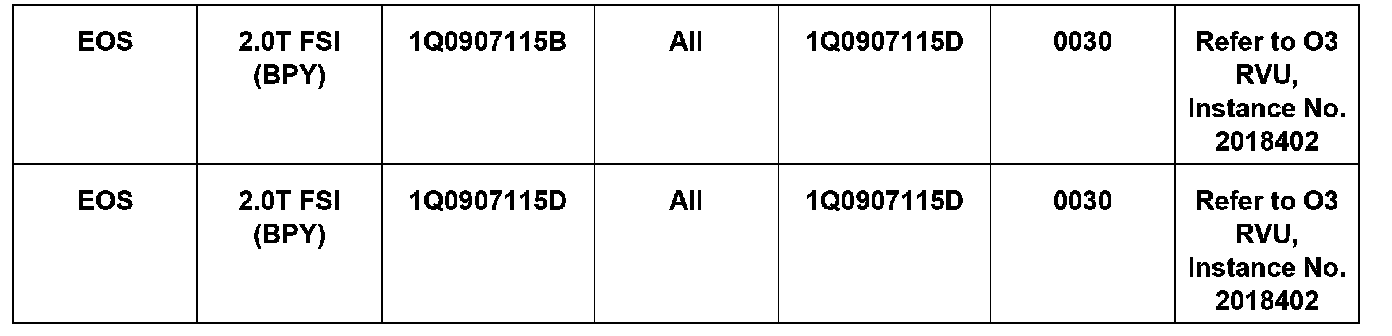

- The table provided is for Information Only. Please refer to technical bulletin instance 2018402 Updated Programming, MIL ON, DTC P0642, P2004, P2008, P3137, or P3138 Stored in ECM.

- Use ElsaWeb search feature or advanced search using key word 24M2 or 03.








Warranty
Information only.

Required Parts and Tools

No Special Parts required.
No Special Tools required.

Additional Information

All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.
