Manual Transmission/Transaxle: Locations

Transmission Drain & Refill

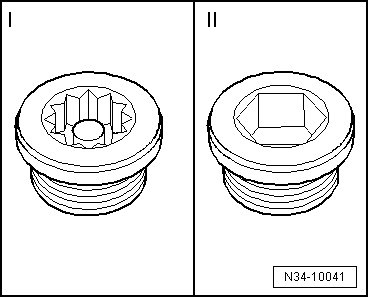

Different Versions of the Oil Fill and Oil Drain Plugs





I - Oil filler or drain plug with multipoint socket head, 45 Nm

II - Oil filler or drain plug with hex socket head, 30 Nm





The oil level is correct when the transmission is filled up to the lower edge of the fill hole.
