Brake Lamp: Service and Repair

High-Mount Brake Lamp (M25)

• Failure of LEDs in high-mount brake lights:

• Individual LEDs in high-mount brake lights are combined into groups of up to four LEDs and are supplied with power as a group.

• The high-mount brake light is designed in such a way that it still meets legal requirements when one LED group fails.

• If another LED group fails, these legal requirements are no longer met.

• When one LED group fails, the intact LEDs are given a higher load, by which failure of other LED groups can be assumed in the near future.

• If more than four individual LEDs in auxiliary brake light have failed, the auxiliary brake light must be replaced (repair measure).


• Turn off the ignition and all electrical consumers.

• Remove the key.

Removal

- Remove the roof end strip.

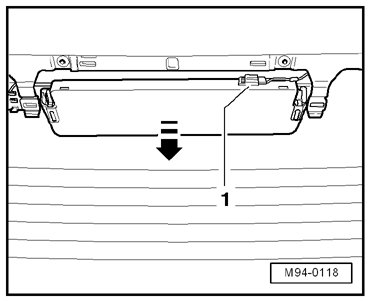

- Disconnect the connector - 1 -.






- Push the high-mounted brake lamp bulb (M25) in - direction of arrow -.

Installation

Installation is performed in the reverse order of removal. Note the following:

- Make sure the seal for the high-mounted brake lamp bulb fits correctly.
