Marker Lamp: Service and Repair

Side Marker Lamps In Front Bumper

Removing and installing the left front side marker lamp bulb (M33) / right front side marker lamp bulb (M34) is identical.

Removal

- Remove the noise insulation.

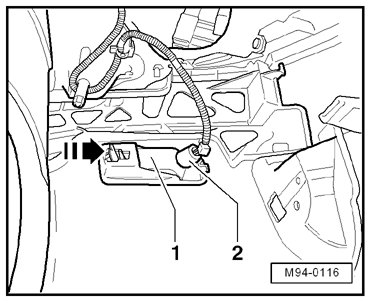

- Press the tab in - direction of arrow - and release the side marker lamp - 1 -.






- Pull the bulb socket - 2 - out of the side marker lamp.

Left Front Side Marker Lamp (M33) / Right Front Side Marker Lamp (M34) , replacing

- Remove the left front side marker lamp bulb - 1 - from the bulb socket - 2 - in - direction of arrow -






Installation

Installation is performed in the reverse order of removal. Note the following:

- Make sure the bulb operates.
