Body - Sunroof/Sun Shade Won't Open
60 10 02June 7, 2010
2019568 Supersedes T.B. Group 60 number 08-01 dated Dec. 11, 2008 to add additional models, model year applicability and field service procedure.

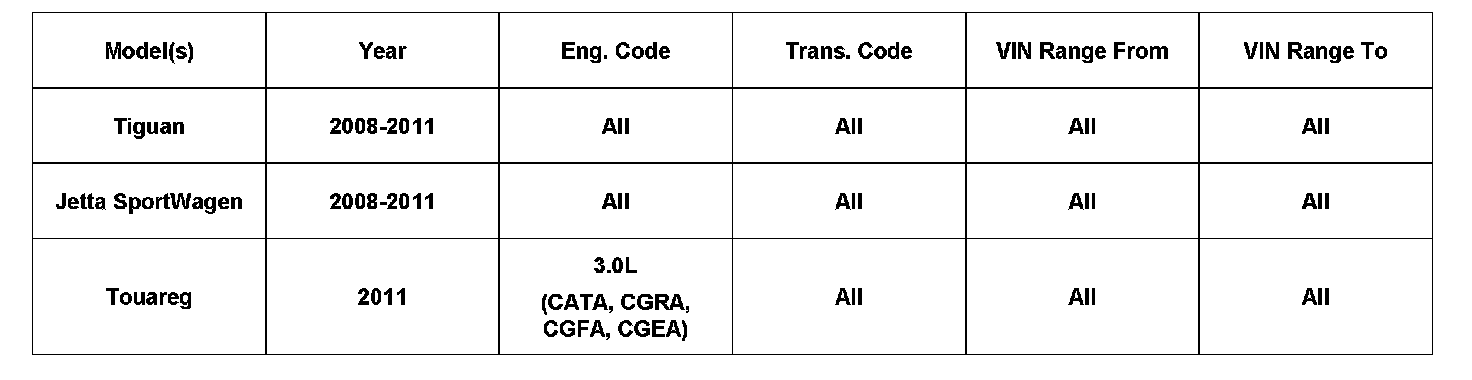

Vehicle Information
Condition
Sunroof / Sunshade, Will Not Open

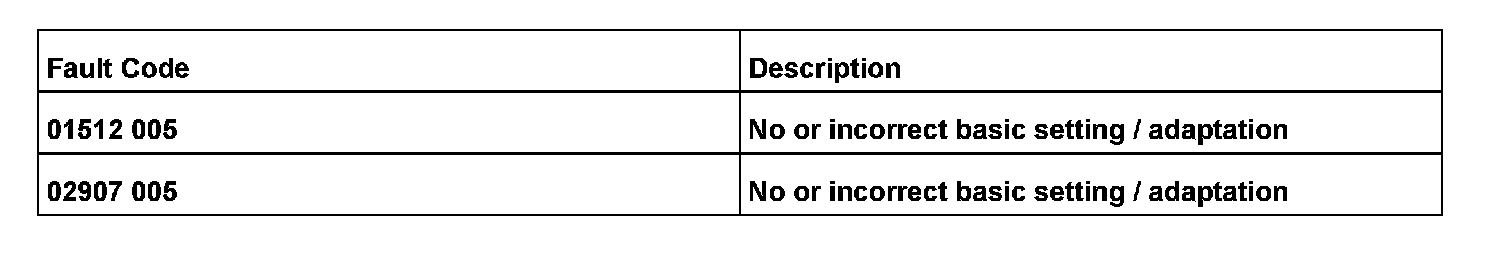

The panoramic sunroof or sunshade cannot be opened. The following fault codes will set in fault memory of control module 4F Panorama roof (Vehicle Electrical System 2):

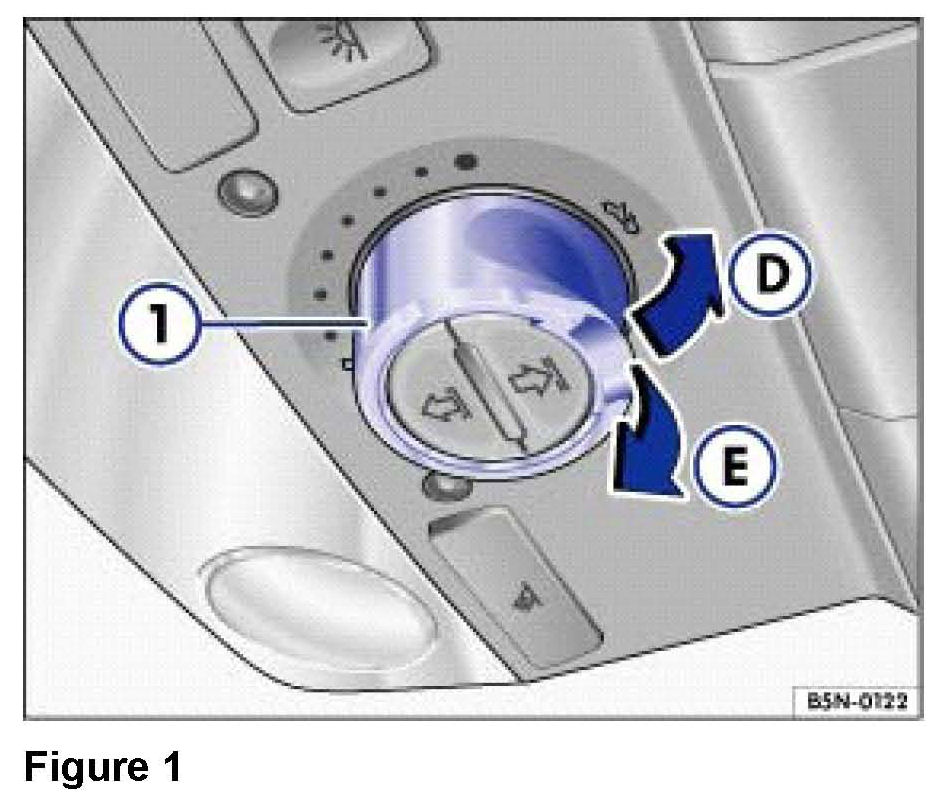

The sunroofs "Basic Setting" has been unintentionally initiated by the customer. When the sunroof is closed and the rotary switch is pulled down in the closed direction (Figure 1, "E" for longer than 10 seconds, the basic setting of the sunroof motor is initiated. If the basic setting is not fully completed, fault codes will set and the sunroof can no longer be opened.

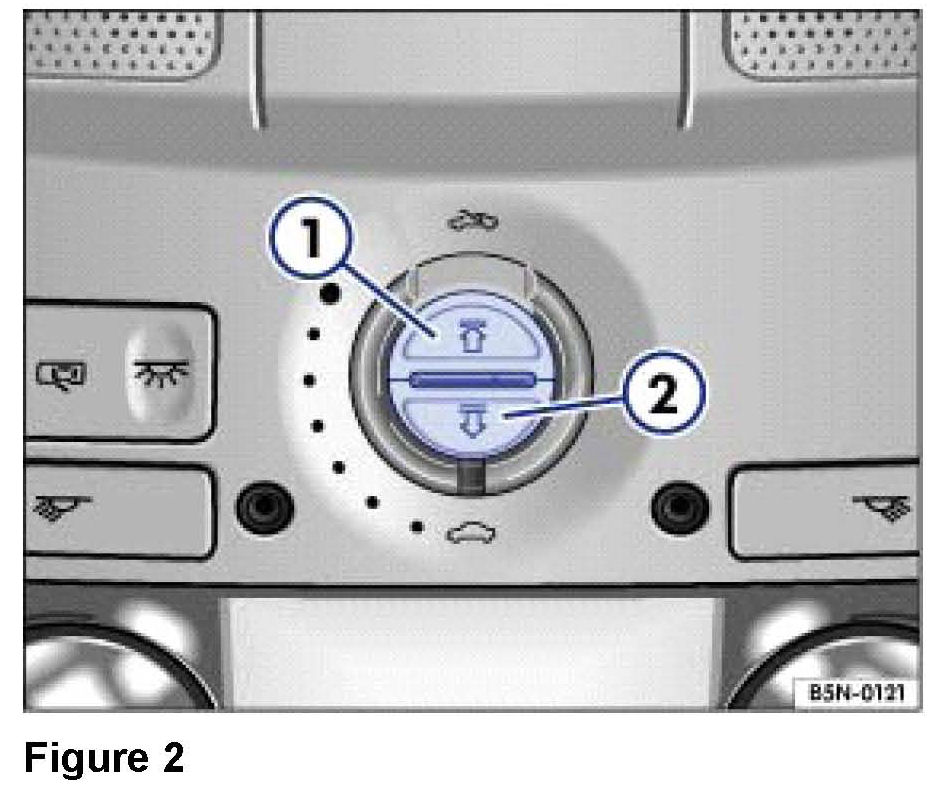

This can also happen if the manual closing function is activated as a result of pressing button 1 for too long (Figure 2) when operating the sunshade. With the prolonged depression of the switch using a second finger, the rotary switch may rotate resulting in unintentional activation of the sunroof opening function (Figure 1, "E").
Field Service - Performing Basic Settings
For vehicles that have not lost battery power, the customer can be instructed to perform Basic Settings" manually:
1. Ignition ON.
2. The rotary switch must be placed in the sunroof closed position.
3. Pull the rotary switch down (Figure 1, "E" and hold for approximately 20 seconds. Do not release the switch until the sunroof returns to closed position.
Tip:
During the adaptation process the glass sunroof will first close and then retract approximately 200mm. After the sunroof closes again the adaptation process is complete.
Production Solution
Not applicable.
Service
Note:
DO NOT replace component(s) for this condition. Component(s) that are replaced for this condition will be debited.

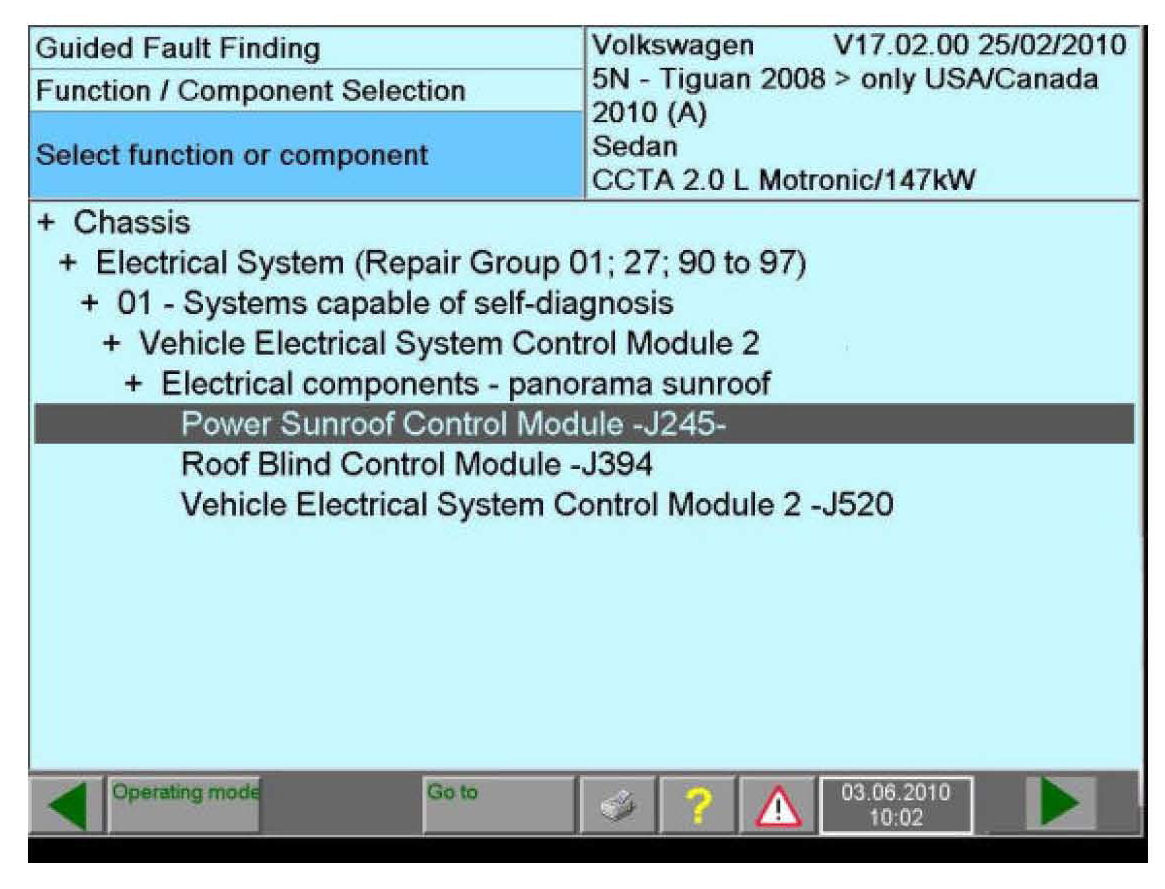

1. Using Guided Fault Finding, perform basic settings on the sunroof and sunshade motor.
2. Instruct the customer on how to operate the sunshade.
Tip:
Always open sunshade before opening sunroof.
How to open sunshade blind
^ Press button 1 briefly (Figure 2) and the blind will open automatically. By pressing buttons 1 or 2 briefly again, the opening process can be stopped in any position.
^ For manual opening, hold down button 1 until the desired position is reached.
How to close sunshade blind
^ Press button 2 briefly (see Figure 2), and the blind will close automatically. By pressing button 1 or 2 briefly again, the closing process can be stopped in any position.
For manual closing, hold down button 2 until the desired position is reached.
Warranty
Required Parts and Tools
No Special Parts required.
No Special Tools required.
Additional Information
All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.
