Instruments - Mirror Moves Inaccurately to Stop Position

97 10 03

February 11, 2010

2019911 Supersedes T.B. Group 97 Number 10-02 dated February 8, 2010 to
correct -J- number associated with front driver door control module.





Vehicle Information

Condition

Door Mirror Moves Inaccurately to Stop Position

After adjusting door mirror using the memory function, mirror does not return to its original position.

Note:
The condition as described is based only on the memory function. Mirror position can be restored by manually operating the mirror switch.

Technical Background

Inaccurate mirror positioning, because of mechanical and/or electronic control problems.

Production Solution

New Door Control Module/Software installed as of:

^ Jetta Sedan 1K_8M078470

^ Passat 3C_7E121329, 3C_7P079052

Service

New door control module software to correct mirror not returning to its original position.

^ Remove front driver door trim panel, see Repair Manual Group 70 Body Interior Trim in ElsaWeb.

^ Replace front driver door control module -J386-, see Repair Manual Group 97 Wiring in ElsaWeb.

Tip:
Always perform Front Passenger Door Control Module coding.

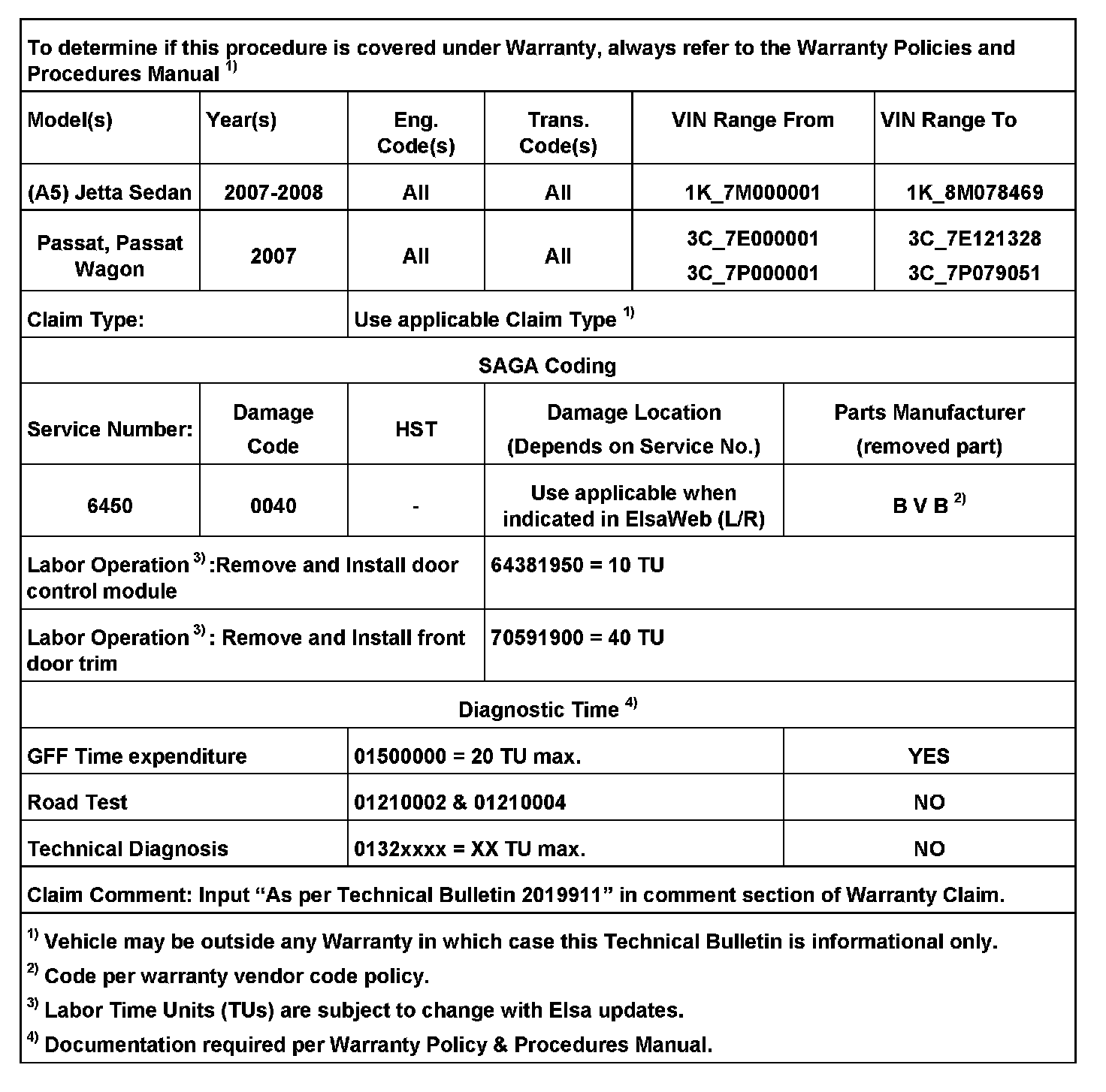

Warranty

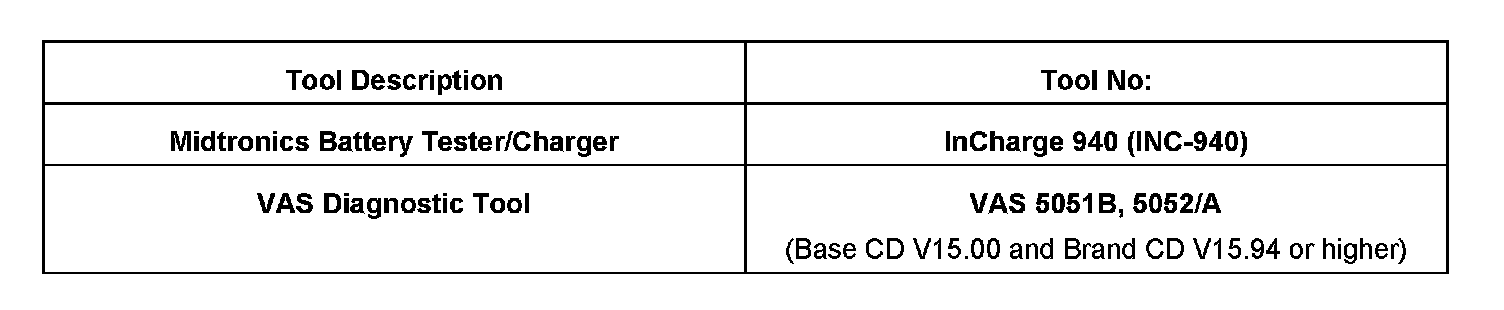

Required Parts and Tools





No Special Parts required.

Additional Information

All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.
