Door Lock Reminder Light: Service and Repair






Front Door Lamps and Switches

Central Locking -SAFE- Indicator Lamp (K133)

Removing:

- Switch ignition and all electrical consumers off and disengage the key or ignition switch in position 0 (ignition off).

- Remove door trim.

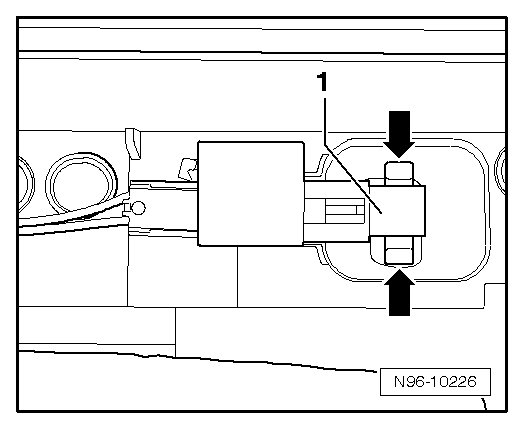

- Unclip Central Locking -SAFE- Indicator Lamp - 1 - from door trim by pressing retaining tabs - arrows - together.

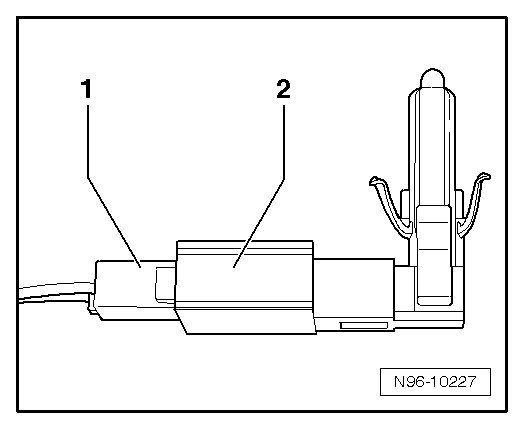

- Disconnect connector - 1 - from central locking -SAFE- indicator lamp - 2 -.





Installing:

Install in reverse order of removal.
