Antenna System Overview, Wagon

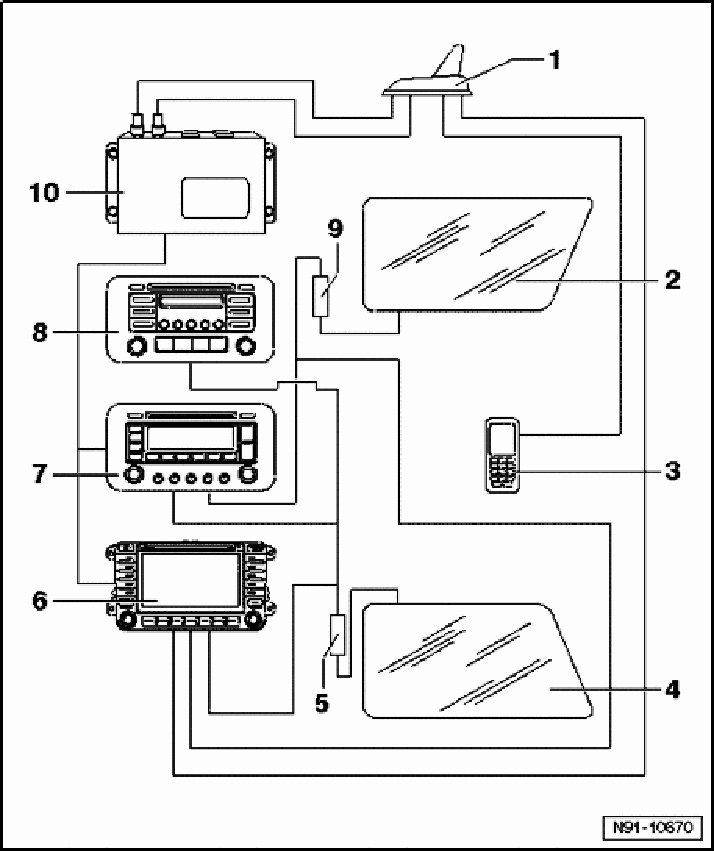

Antenna System Overview

To obtain an overview of antenna wires of a radio or radio/navigation system, always follow antenna wires from the unit to the antenna.







1 - Satellite tuner antenna R172
- Installed on rear of roof
- Roof antenna, removing and installing.
2 - Right rear side window
- With antenna wires for FM radio reception
3 - Cellular telephone R54
- May not be installed
4 - Left rear side window
- With antenna wires for AM and FM radio reception
5 - Antenna Amplifier R24
- Removing and installing
6 - Radio/Navigation Display Control Module J503
- "RNS MFD 2 DVD" with DVD drive for navigation
7 - Radio R
- Radio "Premium Sound System" with integrated 6-disc CD changer
8 - Radio R
- Radio "Sound System"
9 - Antenna Amplifier R24
10 - Digital Satellite Radio Tuner R190
- Digital satellite radio tuner, removing and installing.
