Compact Disc Player (CD): Service and Repair

Storage Compartment With USB Connection

The storage compartment with USB connection is installed in the glove compartment.

Special tools, testers and auxiliary items required
- 3316 Radio removal tool
- Radio Removal Tool 3316 is made up of two identical parts.

Removing
Before starting repair work, perform the following:
- Switch off ignition, switch off all electrical consumers and remove ignition key.
- Remove storage media and their wire connections from the USB connection as necessary.
- Remove glove compartment from passenger side.
- Remove glove compartment with USB connection installed from instrument panel.

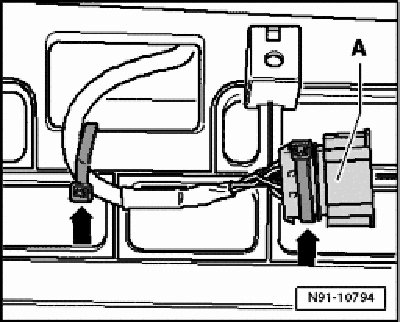

- Disconnect harness connector - A - on glove compartment and remove cable ties - arrows -.
- Pull on the tab in glove compartment and storage compartment with installed USB connection is lowered.







- Slide radio removal tools 3316 into slots designed for them on storage compartment with USB connection - arrows - at left and right until they engage audibly.

For the sake of clarity, the storage compartment is depicted in the removed state for the following work step.

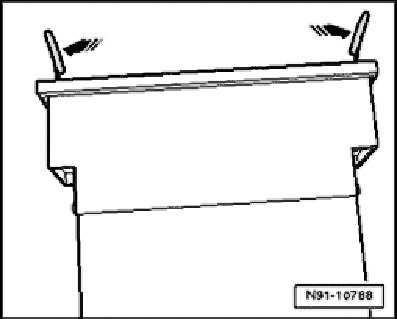

- Push extracting tools apart in - direction of arrow - so that the locking mechanism disengages easily. Then pull the complete insert out of glove compartment with extracting tools pressed.
- Guide disconnected wire connection through the glove compartment.

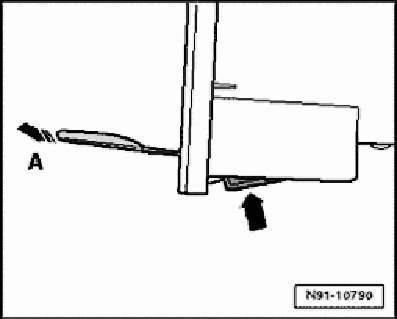

- Push the spring on the removed insert in - direction of arrow - and while doing so pull extracting tool out in - direction of arrow A -.

Installing
- Slide storage compartment into installation frame of glove compartment and when doing this guide wire connection upward through opening in glove compartment.
- Now slide storage compartment in further until it engages audibly.







- Secure harness connector - A - at top on glove compartment with two cable ties - arrows -, make sure no flapping noises can occur. Cut off excess lengths of cable ties.
- Reconnect connectors.
- Reinstall glove compartment.
