A/C - Insufficient Heater Output

80 07 08

Nov. 28, 2007

2016869





Vehicles Affected

Condition

Heater, Output Perceived as Insufficient, Climatronic System Only

NOTE:
The condition as described does not compromise visibility.

Technical Background

Customer may comment that the air coming out of the driver or passenger side vent is not warm enough.

Production Solution

No production change required.

Service





Diagnose the -G150- and/or -G151- temperature sensor (arrows) using normal GFF protocol.

TIP:

-G 150- sensor is located behind driver's side instrument panel cover, in the vent tube (next to the fuse panel), -G151- sensor is located on passenger side in the vent tube.

Warranty

Information only.

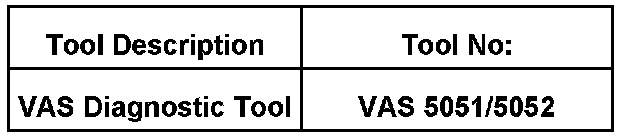

Required Parts and Tools

No Special Parts required.

Additional Information

All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.
