Flywheel: Locations

Sealing Flange, Transmission Side and Dual Mass Flywheel/Drive Plate, Assembly Overview





1 Cylinder block

• Removing and installing crankshaft => [ Crankshaft, Assembly Overview ] Crankshaft, Assembly Overview

• Piston and connecting rod, disassembling and assembling => [ Pistons and Connecting Rod, Assembly Overview ] Service and Repair

2 Fitting pin

• not installed

3 Transmission side sealing flange

• with seal

• only replaced as complete unit

• Removing and installing => [ Transmission-Side Sealing Flange, Removing and Installing ] Transmission-Side Sealing Flange, Removing and Installing

4 Bolt

• Tightening order => [ Transmission side sealing flange, tightening
sequence ]

5 Intermediate plate

• must be located on dowel sleeves

• do not damage or bend when doing assembly work

• Is hooked in at sealing flange => [ Installing intermediate plate ]

6 Bolt

• for dual-mass flywheel/drive plate

• 60 Nm + 90° (1/4 turn) additional turn

• Replace

7 Dual-mass flywheel/drive plate

• Dual-mass flywheel, removing and installing => [ Dual Mass Flywheel, Removing and Installing ] Dual Mass Flywheel, Removing and Installing

• Drive plate, removing and installing => [ Drive Plate, Removing and Installing ] Drive Plate, Removing and Installing

• Only possible to install in one position - Bores are offset

8 Fitting pin

• not installed

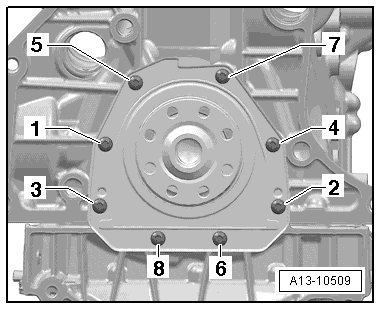

Transmission side sealing flange, tightening sequence





- Tighten the bolts - 1 through 8 - in the sequence shown:

- 1. Hand tighten the bolts

- 2. Tighten the bolts to 9 Nm

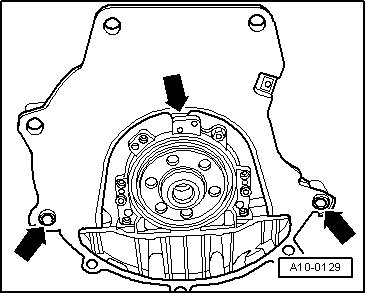

Installing intermediate plate





- Hook in intermediate plate at sealing flange and push it onto the alignment sleeves - arrows -.
