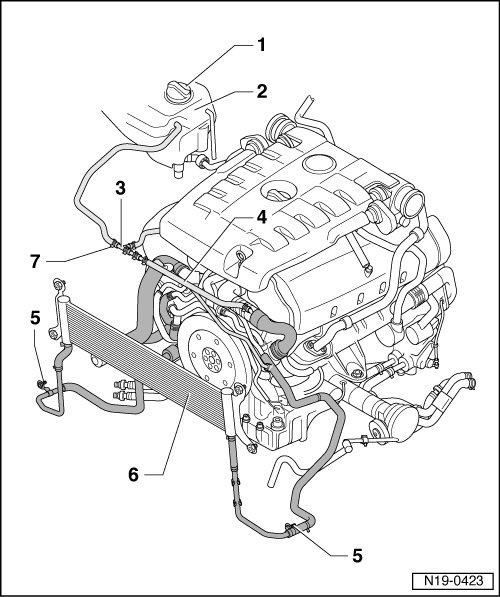

Cooling System Components, Body Side

Cooling System Components, Body Side






1 Cap

• Check using the cooling system tester (V.A.G 1274) and adapter (V.A.G 1274/9).

• Test pressure 1.4...1.6 bar.

2 Expansion Tank

• Perform a leak test of the cooling system using the cooling system tester (V.A.G 1274) and adapter (V.A.G 1274/8).

• Depending on optional equipment, the connection may be sealed with a blanking plug.

3 Y- Connection

• Note the installed position.

4 Coolant Hose

• Fastened to the lock carrier.

5 Bracket

6 Generator/Fuel Cooler

Vehicles with engine code BKW:

• For the generator and fuel cooling.

Vehicles with engine code BWF:

• For fuel cooling.
