Cylinder Head Assembly: Tools and Equipment

Special Tools

Special tools, testers and auxiliary items required

• Sealing Tool (T10247)

• Connecting Hose (VAS 6278)

• Container for Removed Parts (V.A.G 1698)

• Engine Bung Set (VAS 6122)

• Torque Wrench (40-200 Nm) (V.A.G 1332)

• Puller (T10055)

• Wrench (T10211)

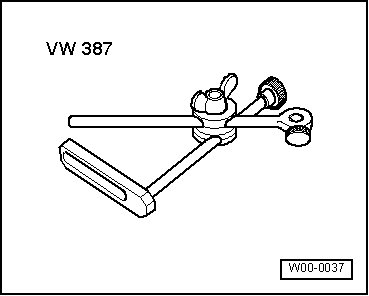

• Dial Gauge Holder (VW 387)











Special tools, testers and auxiliary items required

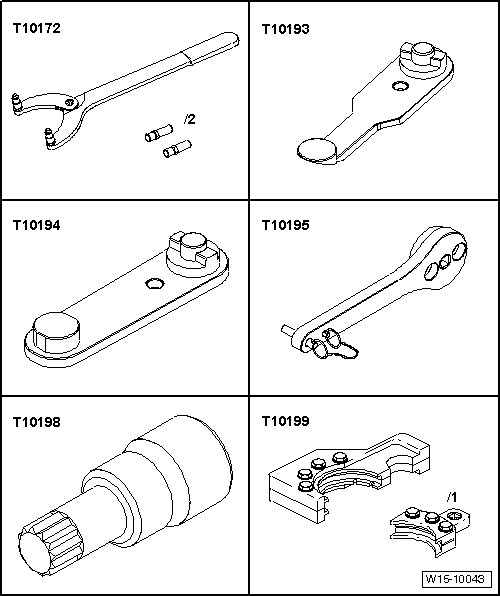

• Counterhold Tool Touareg V10 (T10172)

• Guide Pins (T10193)

• Guide Pins (T10194)

• Camshaft Tool (T10195)

• Socket XZN 16 (T10198)

• Clamping Device (T10199)






Special tools, testers and auxiliary items required

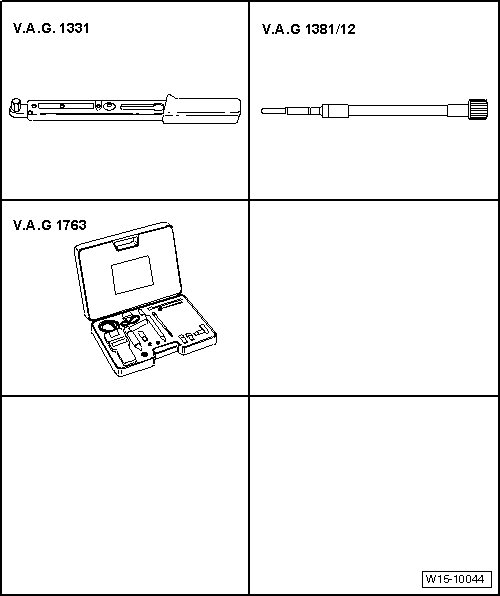

• Torque Wrench (5-50 Nm) (V.A.G 1331)

• Adapter for VAG 1323A (V.A.G 1381/12)

• Compression Tester (V.A.G 1763)






Special tools, testers and auxiliary items required

• Adjustable Rod (2036)

• Slide Hammer (3047 A)

• Seal Driver (3129)

• Valve Lever (VW 541/1 A)

• Press Tool for VW 541/1A and 2037 (VW 541/5)
