Procedures

Instrument Cluster Display, Setting Time, Language and Units

• Time: The time can be set here and can be switched between the 12 and 24 hour display.

• Language: The language of the instrument cluster display can be set here.

• Units: The units for temperature, consumption and pressure can be set here.

Instrument Cluster, Highline (One-Color Display):

The menu can be operated using either the control elements in the windshield wiper stalk, or the control elements in the multi-function steering wheel.

1. Operating with windshield wiper stalk:

- Press selector - B - longer than 2 seconds, until the main menu is displayed.

- Press the top or bottom selector, until the menu selection "COMFORT SETUP" is displayed inverted.

The main menu "COMFORT SETUP" has the following functions, e.g. "Light", "Speed warning", "Time", "Comfort", "Language", "Units", "Reset".

- Press the button - A - enough times until the appropriate menu is selected.

Using the button and selector, all of the other instrument cluster menus can be operated.

2. Operating with multi-function steering wheel:

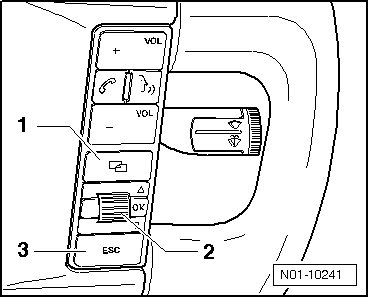

- Press button - 1 - or button - 3 - to change menus and use thumb wheel - 2 - to make a selection (turn).

- Press button - 1 - or button - 3 -, until the menu selection "COMFORT SETUP" is displayed inverted.

The main menu "COMFORT SETUP" has the following functions, e.g. "Light", "Speed warning", "Time", "Comfort", "Language", "Units", "Reset".

Turn the thumb wheel - 2 - until the desired menu selection is displayed.

- Press the thumb wheel. The selected menu is displayed.

For example, set clock via multi-function steering wheel:

- Switch ignition on.

- Press button - 1 - to activate menu selection in instrument panel insert display.

- Select the menu option "Clock" with the thumb wheel - 2 -

When the menu item "Clock" is selected in display - 1 - confirm the menu setting by pressing the thumb wheel.

- Set the time using the thumb wheel as well as the 12/24 hour clock mode settings.

• If the clock is found in the tachometer, the clock can be set using the adjustment knob below the tachometer.

Instrument Cluster, Premium (Color Display);

• In the color display, outside temperature, time and mileage are continually displayed.

Operating with multi-function steering wheel:

- Touch (press) button - 1 - or button - 3 - to change menus and use thumb wheel - 2 - to make a selection (turn).
