Front Passenger Airbag Deactivation Key Switch (E224), From 12.06

Front Passenger Airbag Deactivation Key Switch (E224), From 12.06

The Front Passenger Airbag Deactivation Key Switch is located in the glove compartment on the passenger side.

Front Passenger Airbag Deactivation Key Switch, vehicles through 11.06, removing and installing, refer to => [ Front Passenger Airbag Deactivation Key Switch, Through 11.06 ] Front Passenger Airbag Deactivation Key Switch (E224), Through 11.06.

Removal

- Turn off the ignition and all electric consumers and remove the key.

- Remove right side cover of instrument cluster.

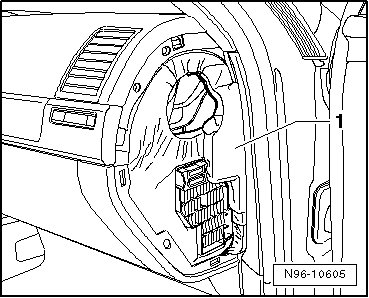

- To gain access to Front Passenger Airbag Deactivation Key Switch, press insulating material - 1 - to side slightly.






- Press both retaining tabs - arrows - together and slide Front Passenger Airbag Deactivation Key Switch - 1 - inward through glove compartment.






- Open glove compartment cover.






- Release and disconnect connector - 2 - and remove Front Passenger Airbag Deactivation Key Switch - 1 - from vehicle.

Installation

Install in reverse order of removal.
