Headlamp Range Control Adjuster (E102) and Instrument Panel Illumination Dimmer Switch (E20)

Headlamp Range Control Adjuster (E102) and Instrument Panel Illumination Dimmer Switch (E20)

• The Headlamp Range Control Adjuster and Instrument Panel Light Dimmer Switch comprise one component.

Removal

- Turn off the ignition and all electric consumers and remove the key.

- Remove instrument cluster trim on driver's side.

- Release and disconnect the connector - arrow -.

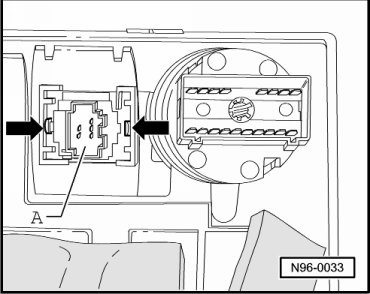

- Compress side retaining straps at Headlamp Range Control Adjuster and Instrument Panel Light Dimmer Switch - arrows - so that retaining tabs disengage.






- Remove Headlamp Range Control Adjuster and Instrument Panel Light Dimmer Switch - A - toward rear out of installation frame in instrument cluster trim.

Installation

Install in reverse order of removal.
