Battery Main Switch and Disconnect Switch (E74) Overview

Battery Main Switch and Disconnect Switch (E74) Overview

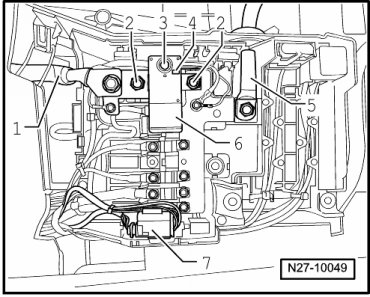

1 Starter wire
2 Threaded connection for battery cut-off switch, 20 Nm
3 Reset button
4 Sight glass
5 To battery positive terminal
6 Main battery switch
7 Multi-pin connector
