Clock: Testing and Inspection

Clock and Date, Jetta from MY 05 and Golf Wagon from MY 07, Setting

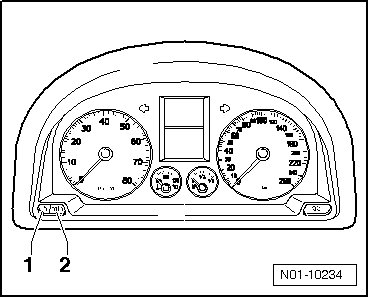

Set clock with buttons below tachometer:

Adjustment buttons are located at left under tachometer.






- Press the left button - 1 - to set the hour. Press the button quickly to advance the hours.

- Press the right button - 2 - to set the minute. Press the button quickly to advance the minutes.

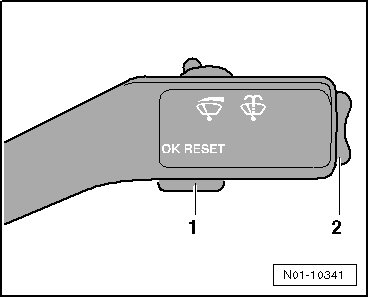

Set hour and date with buttons on windshield wiper lever:






- Switch the ignition on.

- Press button - 2 - for 2 seconds to go to main menu.

- Select "Settings" menu with button - 2 - and confirm with button - 1 -.

- Select "Clock" menu with button - 2 - and confirm with button - 1 -.

- Press the button - 1 - to highlight "hours". Press the button - 2 - to select the correct hour and press button - 1 - to confirm.

- Do the same with menu item "Minutes".

- You can leave the "Settings" menu using menu item "back".

- Select "MFI" (multifunction indicator) and press the button - 1 - to confirm.

- Turn off ignition.

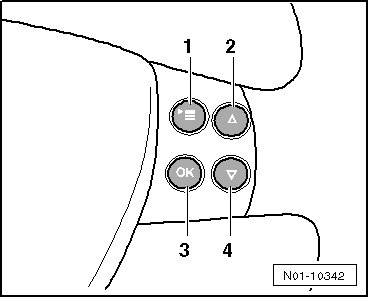

Set hour and date with buttons on multi-function steering wheel:






- Switch the ignition on.

- Press the button - 1 - until the "settings" menu appears.

- Then select menu item "Clock" with buttons - 2 - and - 4 -.

- Press the button - 3 - to confirm.

- The highlighted menu item will appear between the two horizontal lines when "hours" is highlighted. Press the button - 3 - to confirm and then set the hour using the buttons - 2 - and - 4 -.

- Confirm with button - 3 - and change to minute setting which is done the same as when setting the hour.

- You can leave the menu again with button - 1 -.

- Turn off ignition.
