Headlamp Washer Reservoir: Service and Repair

Windshield and Headlamp Washer Fluid Reservoir

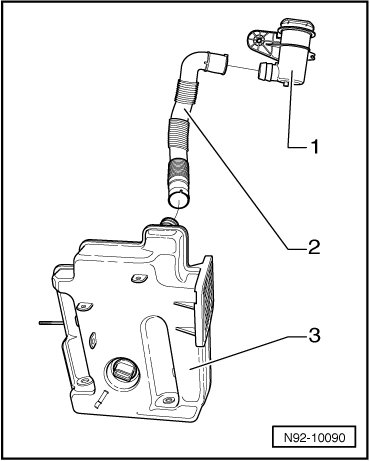

The tank for the windshield washer and headlamp cleaning system is in three parts. The individual components are connected. In order to guarantee the correct position of the parts with respect to each other, make sure that the guides present on the individual components engage in each other during assembly.






1. Filler tube for tank for windshield washer system and headlamp cleaning system, removing and installing, refer to=> [ Filler Tube ] Filler Tube.

2. Connecting tube of filler tube to tank, connecting tube is removed together with tank for windshield washer system and headlamp cleaning system. Refer to=> [ Reservoir ] Reservoir.

3. Tank for windshield washer system and headlamp cleaning system, removing and installing, refer to=> [ Reservoir ] Reservoir.
