Child Seat: Service and Repair

LATCH Child Seat Anchors

--> [ Child Seat Anchors in Rear Parcel Shelf ]

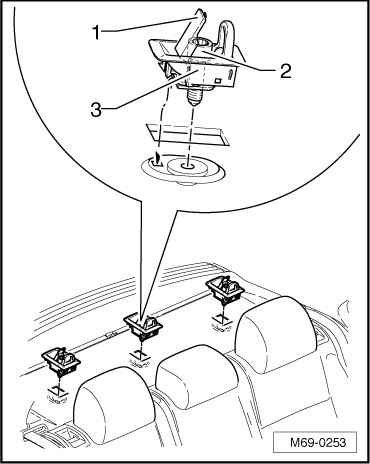

Child Seat Anchors in Rear Parcel Shelf

Removing

- Open cover cap - 1 -.





- Remove bolt - 2 - (20 Nm).

- Remove child seat anchor - 3 - from rear shelf.

Installing

To install, perform the steps used for removal in reverse order.
