Interior - Rear Seat Back Carpet Detached

74 10 01

March 18, 2010

2023026

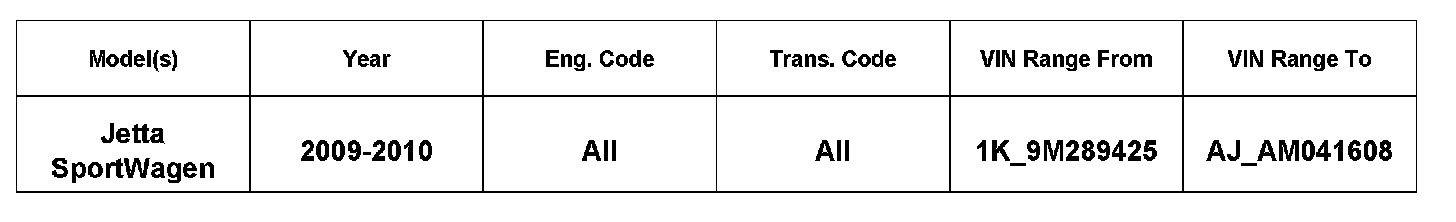

Vehicle Information

Condition

Rear Seat Back Carpet May Detach

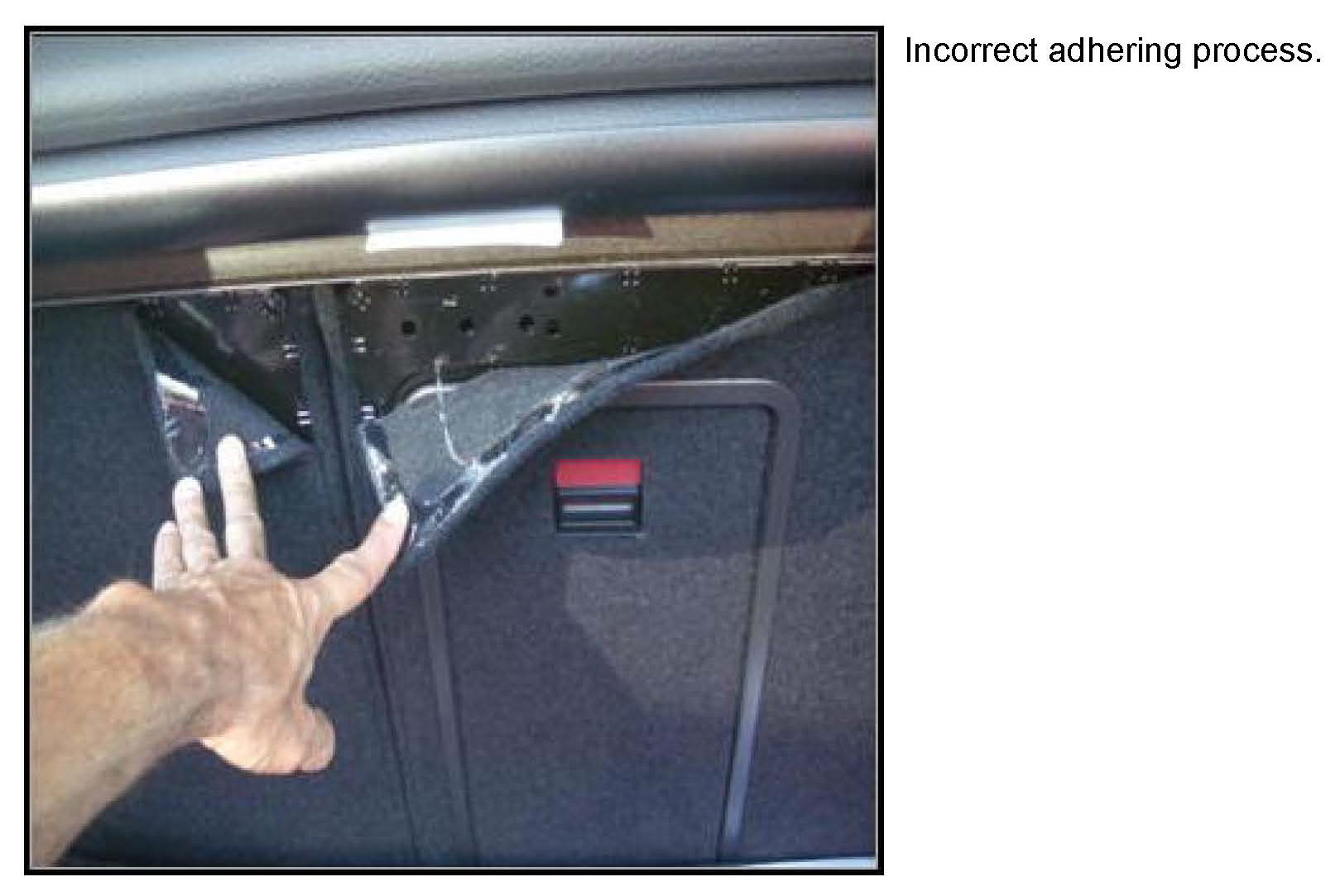

Technical Background

Production Solution

Optimization of carpet adhering process as of VIN: AJ_AM041609.

Service

Note:

Ensure vehicle is at room temperature before beginning repair.

1. Open all doors to ensure ventilation.

2. Apply protective covering to rear seat cover material.

3. Fold down seat back.

4. Using 3M Adhesive Remover and a clean towel, remove original adhesive from seat back frame and carpet backing (if needed).

5. Apply adhesive Part No. D 001 250 sparingly on both the carpet back and seat back frame surfaces.

6. Allow adhesive to set up for 10 minutes.

7. Carefully position carpet back over the seatback frame.

8. Using a plastic body filler spreader or equivalent, apply pressure working from the center outward, to the corners.

Note:
Ensure cleanliness and inspect carpet corners. DO NOT allow a visible glue line to form around corners or get glue residue on carpet.

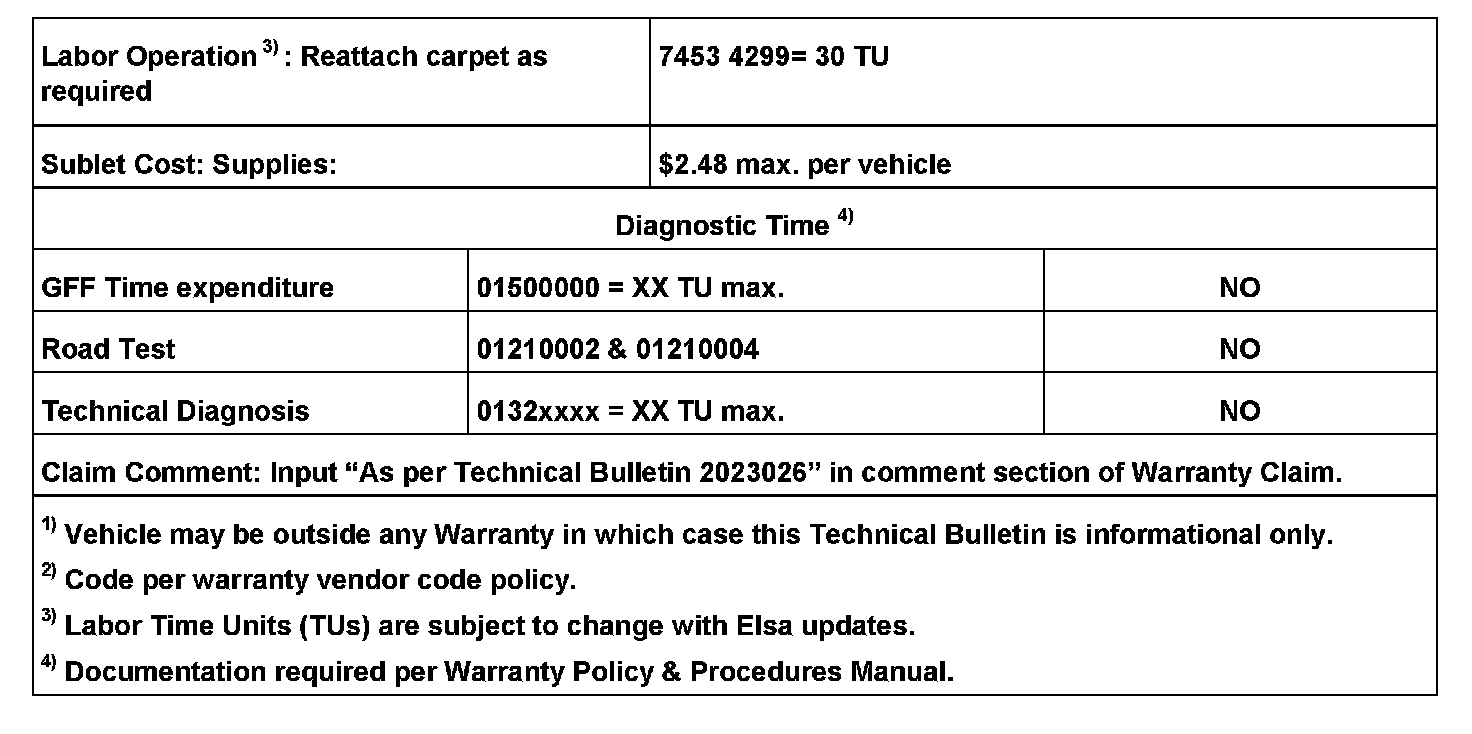

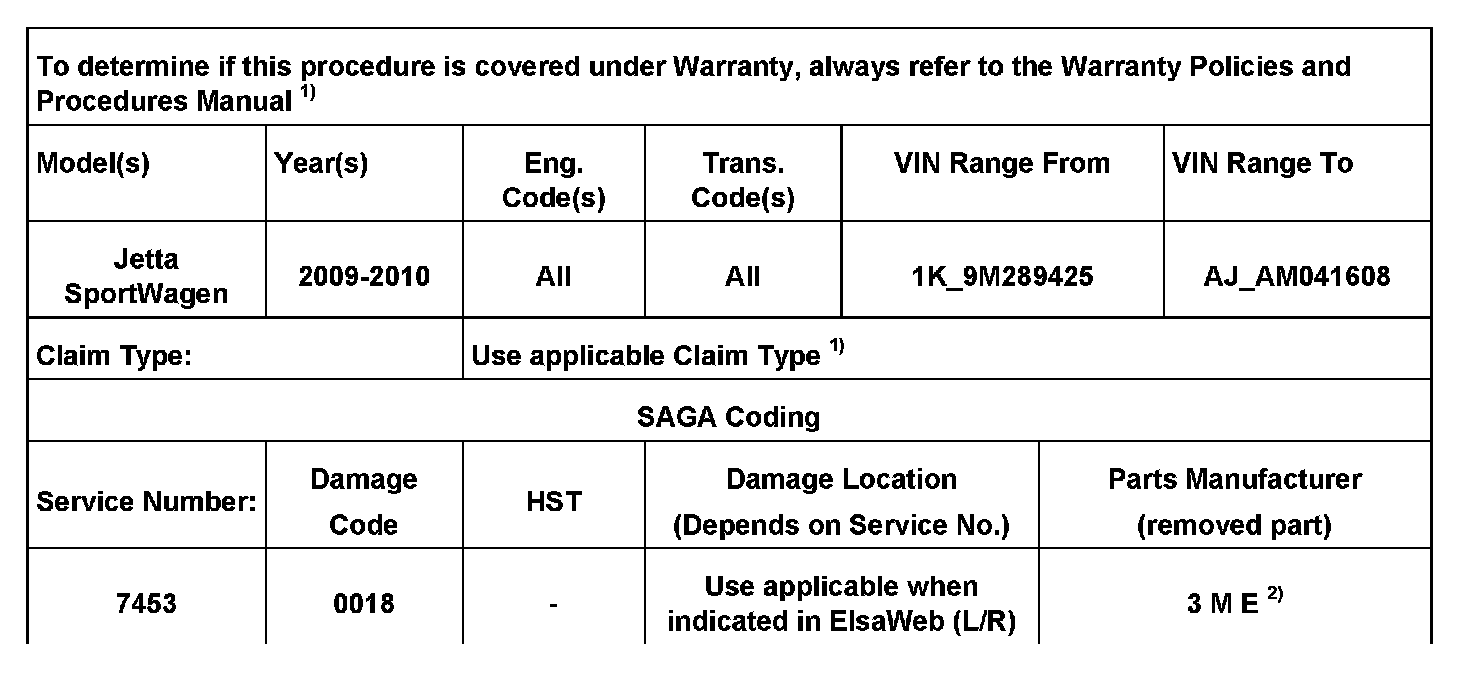

Warranty





Required Parts and Tools

Additional Information

All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.
