Antenna System Overview - Radio/Nav System - Wagon

- Component Locations: Radio / Navigation Systems

Antenna System Overview - Radio/Navigation System - Wagon

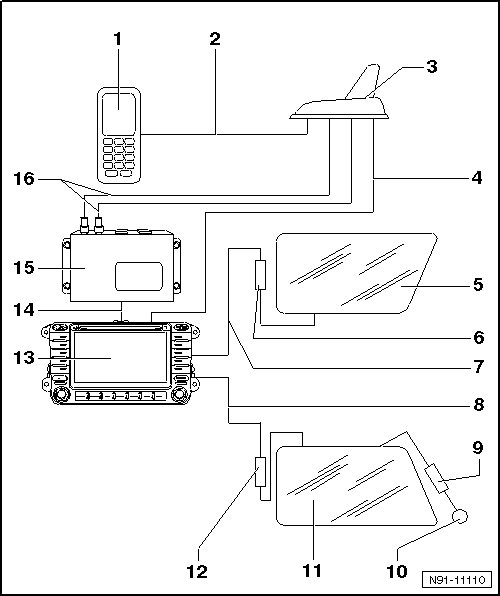

1 - Cellular Telephone -R54-

2 - Antenna Line
• From the telephone system to the roof antenna

3 - Telephone/Navigation System (GPS)/Auxiliary Heater Antenna -R66-
• Located on the rear of roof

4 - Antenna Line
• From the radio navigation system to the roof antenna

5 - Side Window Antenna - Right
• Located at rear right window
• With antenna wires for wireless reception FM

6 - Antenna Amplifier -R24-
• Located at the left rear side window at the C-pillar
• Located at the right rear side window at the C-pillar
• Location view => [ Antenna Amplifier ] See Image Below.

7 - Antenna Line
• From the rear right side window to the radio

8 - Antenna Line
• From the rear left side window to the radio

9 - Antenna Amplifier -R24-
• Located at the left rear side window at the C-pillar
• Located at the right rear side window at the C-pillar
• Location view => [ Antenna Amplifier ] See Image Below.

10 - Connection for Remote Maintenance

11 - Side Window Antenna - Left
• Located at rear left window
• With antenna wires for wireless reception AM/FM plus an antenna wire for remote maintenance

12 - Antenna Amplifier -R24-
• Located at the left rear side window at the C-pillar
• Located at the right rear side window at the C-pillar
• Location view => [ Antenna Amplifier ] See Image Below.

13 - Radio/Navigation Display Unit Control Module -J503-

14 - Connection Line
• From the radio to the digital satellite radio tuner (audio signal line)

15 - Digital Satellite Radio Tuner -R190-

16 - Antenna Lines
• From the digital Satellite radio tuner to the roof antenna


Antenna Amplifier






- - Antenna Amplifier -R24-
