Dashboard / Instrument Panel: Adjustments

Instrument Panel, Aligning in Vehicle

Instrument Panel, Aligning in Vehicle

It is not necessary to change instrument panel position to increase horizontal gap between door trim and instrument panel.

- Hold an appropriately thick cloth at left edge of instrument panel and close door.

In this way, door trim engages closer to door and the gap between door trim and instrument panel increases appropriately. Thus, it is not necessary to align instrument panel.

• Perform work on passenger side in the same way.

Instrument panel, aligning

Instrument panel can be aligned in height and diagonally to direction of travel.

- Remove the wiper arms

- Remove the left plenum chamber cover

- Remove side instrument panel covers .

- Remove the heat and A/C controls trim .

- Loosen the bolts - 1 - and - 2 - under the heater and air conditioning controls 2 to 3 turns (2.5±0.5 Nm).





- Remove the trim on both sides of the footwell.

- Loosen the screw - 1 - in the plenum chamber 2 to 3 turns (20 Nm).





• A different vehicle is shown as an example in the following illustrations. Removal and installation is same for Tiguan.

- Loosen the two screws - 1 - and - 2 - in the tunnel area 2 to 3 turns (20 Nm).





• A different vehicle is shown as an example in the following illustrations. Removal and installation is same for Tiguan.

- Loosen nut - 1 - on right side 2-3 turns (20 Nm).

- Loosen the two nuts - 2 - on the left side 2 to 3 turns (20 Nm).

Instrument panel, aligning height

• Instrument panel height is set using eccentric screws - 3 - and - 4 -.

• In the zero position, the longer eccentric surface faces toward outside of vehicle.

• Eccentric must not be turned more than ±90° out of zero position.

- Adjust desired instrument panel height using eccentric screws - 4 - and - 3 -.





Align the instrument panel diagonally to direction of travel.

CAUTION!
When adjusting, only the marked surfaces on the instrument panel can be loaded to prevent damage to the vehicle.

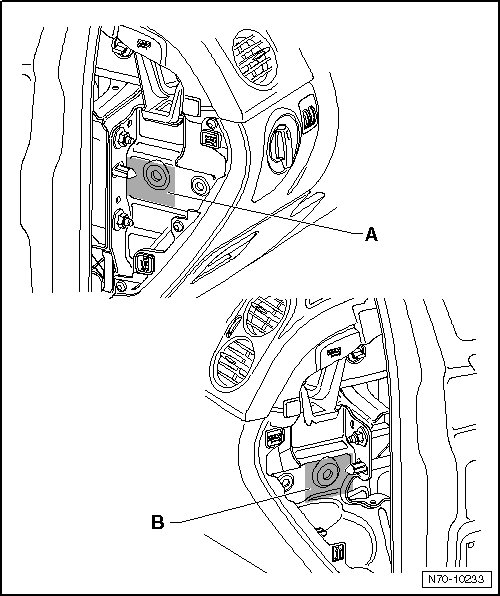

- Push the instrument panel, inside the marked surfaces - A - and - B -, into the desired position.





- After aligning in vehicle, secure instrument panel with specified torque.

Installation of removed components is reverse of removal.
