Compass: Service and Repair

Roof Module Compass, Adjusting Zones

The compass indicates the direction vehicle is facing.

For a correct reading, the correct compass zone must be adjusted.

Compass Zone, Setting

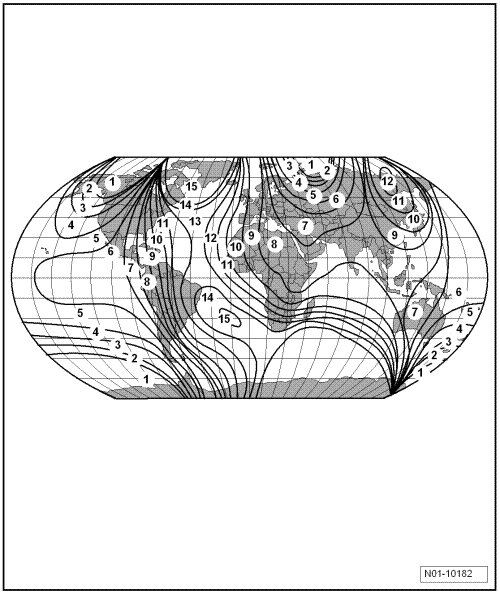

- Determine your geographical location on the zone map

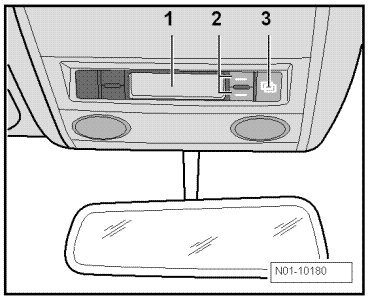

- With ignition switched on press button - 3 -





- Select with the function keys - 2 - in the display - 1 - the symbol "N" and confirm OK

- Select the function keys - 2 - the selected zone between "1 and 15" and confirm OK in order to adjust the compass zone.

The selected zone is stored, the compass reading appears in the display.
