Map Light: Service and Repair

Rear Reading Lamps

• Removal and installation for both rear reading lights is performed in the same way and is only described for one reading light.

Removal

- Turn off the ignition and all electric consumers and remove the key.

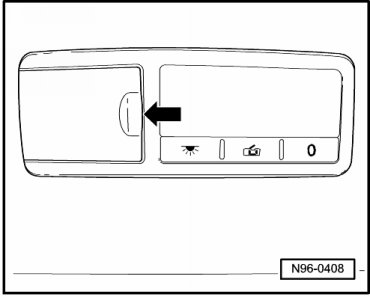

- Fold up cover - arrow -.

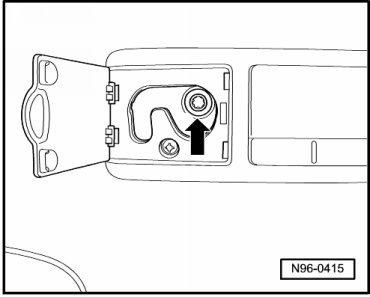

- Remove mounting bolt - arrow - and remove reading light.

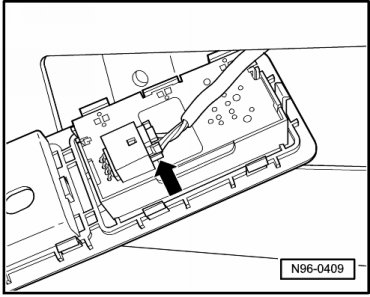

- Release and disconnect the connector - arrow -.






Bulb, Replacing

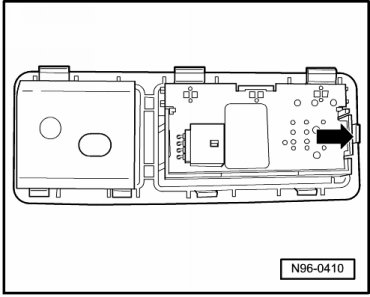

- Disengage retaining tab - arrow - and remove lamp carrier with switches from diffusion lens.

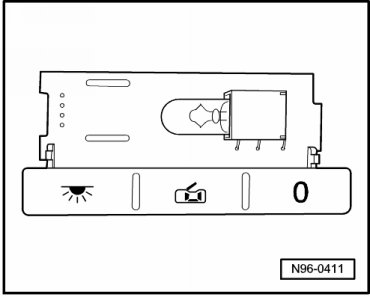

- Carefully remove bulb from socket.






- Replace bulb (12V, 5 W).

Installation

Install in reverse order of removal.
